Specifications
Prod Model: |
MS-012 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Controller: |
Pg |
Controller Max Output Current: |
50A |
Drive Method: |
Singer Motor |
Radius Of Gyration: |
<=1.0m |
Max Grade Ability: |
<=1.4m |
Max Climbing Angle: |
12° |
Net Weight: |
41kg |
Gross Weight: |
51kgs |
Carton Size: |
107*55*57cm |
Deliver Date: |
15 Days |
Product Description

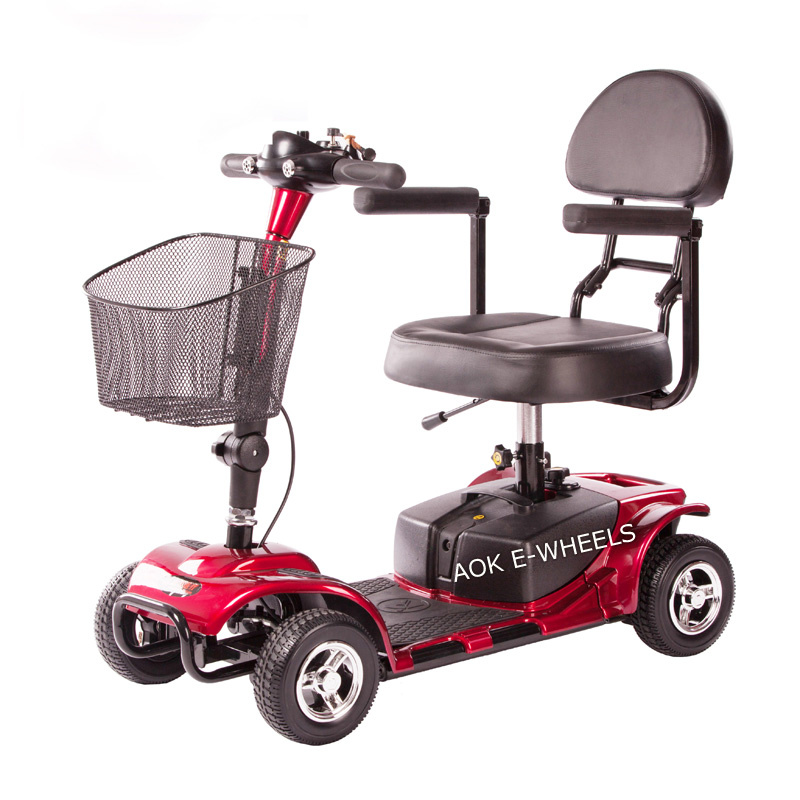

180W Taiwan Motor Disabled Electric Mobility Scooter with PG Controller
Model No.:MS-012
Certificate:CE/ISO/ISO13485
Motor:DC 180W (made in Taiwan)
Battery:12V 12AH*2Pcs
Controller:PG
Charger:DC 220V, 50Hz, 2A
Armrest Height:200mm
Seat Width:450mm
Seat Length:430mm
Specification
Specification Details: | Motor | DC 180W (made in Taiwan) |
Battery | 12V 12AH*2Pcs |
Controller | PG |
Charger | DC 220V, 50Hz, 2A |
Charge time | 8~10h recommended |
Controller max output current | 50A |
Wheel Size | 8 inch |
Performance & Main components
Performance & Main components | Driving Range | 15~20km |
Max Speed | Forward: 8km/h; backward: 3.5km/h |
Brake | Automatic electromagnetic |
Drive method | Singer motor |
Radius of gyration | ≤1.0m |
Max grade ability | ≤1.4m |
Max climbing angle | 12° |
Armrest Height | 200mm |
Seat Width | 450mm |
Seat Length | 430mm |
Height between seat and ground | 500mm |
Folded Width | 310mm |
Backrest Height | 420mm |
Pedal height | 90mm |
Packaging&Delivery
Packaging Details: | Overall size | 1136mm*615mm*935mm |
Net weight | 41kg |
Gross weight | 51kgs |
Loading weight | 100kg |
Carton size | 107*55*57cm |
Delivery Details: | 15 days |
