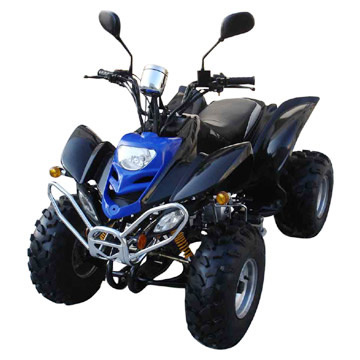

Four-Stroke EU Standard ATV (ATV05)

Specifications

Prod Model:	ATV05

Product Description

Art.NO.:Automatic
Features:
1) ATV engine type: 4-stroke, air-cooled
2) Transmission system: chain drive
3) Bore x stroke: 52.4 x 57.8mm
4) Piston displacement: 117ml
5) Max/ power (kW/rpm): 5.5/7,500
6) Max. torque (N.m/rpm): 7.5/6,000
7) Starting system: electric starter
8) Min. turning radius: 2,000mm
9) Ground clearance: 100mm
10) Brake: front drum and rear disc
11) Parking brake: mechanical lock
12) Tire: front AT19 x 7-8/2.9PSI; rear AT18 x 9.5-8/2.9PSI
13) Ignition type: CDI
14) Fuel tank capacity: 7.8L
15) Suspension: front independent and rear mono-shock swing arm
16) Battery: 12V, 9Ah
17) Max. load capacity: 95kg
18) Engine oil capacity: 0.9L
19) Gear oil capacity: 0.11L
20) Pressuring splash lubrication, single cylinder
21) Wheelbase: 1,110mm
22) Compression ratio: 9.2 : 1
