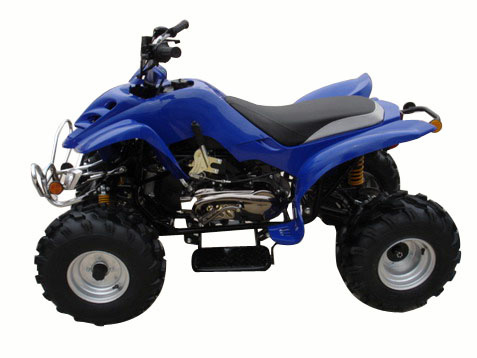

Home China Wangli Group Co., Ltd. Four-Stroke ATV (WL-ATV04)
Specifications
| Prod Model: | WL-ATV04 |
|---|
Product Description
Art.NO.:WL-ATV04Features:
1)ATV engine type: 4-stroke, air cooled
2)Transmission system: chain drive, V-belt CVT
3)Bore x stroke: 52.4 x 57.8mm
4)Piston displacement: 149ML
5)Max power (kW/r/min): 5.5/7500
6)Max torque (N.m./r/min): 7.5/6,000
7)Starting system: electric starter
8)Min turning radius: 2000mm
9)Ground clearance: 100
10)Brake: front drum and rear disc
11)Parking brake: mechanical lock
12)Tire: front AT19 x 7-8/2.9Psi; rear AT18 x 9.5-8/2.9Psi
13)Ignition type: C.D.I
14)Fuel tank capacity: 7.8L
15)Suspension: front independent and rear monoshock swing arm
16)Battery: 12V, 9Ah
17)Max load capacity: 95kg
18)Engine oil capacity: 0.9L
19)Gear oil capacity: 0.11L
20)Pressuring splash lubrication, single cylinder
21)Wheelbase: 1,110mm
22)ATV size (L x W x H): 1515?845?740MM
23)Compression ratio: 9.2 : 1
