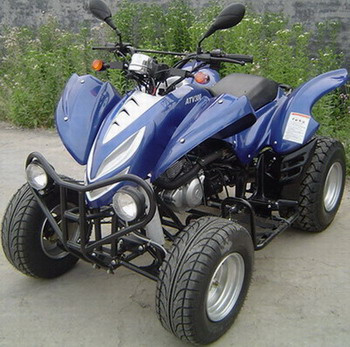

Home Atv Machinery Co., Ltd. FL300CC ATV
Specifications
| Prod Model: | ATV0005 |
|---|
Product Description
Dimension (LxWxH) 1900x1050x1350mmProper Mass of Empty Vehicle 220kg
Max speed ≥75km/h
Climbing Ability ≥20
Distance between axles 1255mm
Distance between front wheels 810mm
Distance between rear wheels 850mm
Ground clearance 150mm
Specification of Front Wheel 21X8-10
Specification of Rear Wheel 22X10-10
Type of Engine 4-stroke, single cylinder
Cylinder Bore x Stroke 78mmX61. 2mm
Efficient Capacity 292ml
Rated Power and Rotate Speed 13. 5KW/7000r/min (18. 4HP)
Max Torque and Rotate Speed 20N. M/6000r/min
Compressing Ratio 8. 9: 1
Gearshift Mode Five Speed/shaft drive/reverse
Starting System Electrical Starting
Cooling System Air Cooling
Fuel tank 7. 5L
