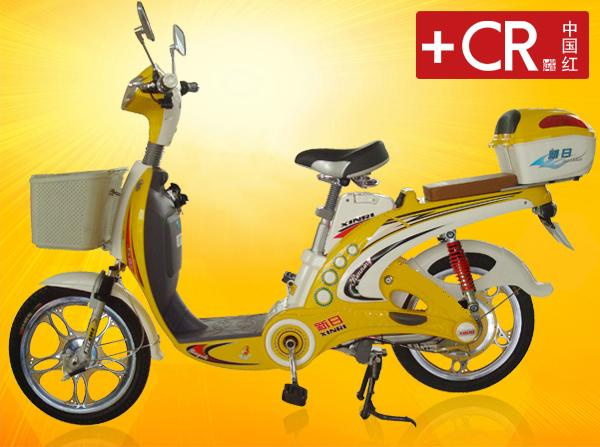

Fenghua Series Electric Scooter

Specifications

Product Description

Dimension(L*W*H)mm: 1750*610*1100mm
Voltage: 48V
Speed: <=20km/h(limited speed)
Motor style: Directly brushless magnetism colour wheel
Battery: Valve control, plumbum acid
Rated output power: 240W
Rated empty load speed: 350r/min
Continues the distance: >=40km
Over current protection: 15+-1A
Center distance: 1150mm
Charging time: 6_9h
Rated voltage: 48V
Battery capacity: 10AH
Controller low voltage protect: 42+0.5V
Sale point
Safe system:
1)front brake + rear brake + ABS electrical power assistance apply the brake system + auto cruise brake + prevent shake front fork. So as to calm brake, comfortable apply the brake
2)Super strong wave bicycle frame, net weight more than other vehicle type 15%, haved inspected the welt slot of the frame and the body, at the same time in two hundred thousands times high strong vibration experiment, so on the safe side.
2 pretect from the steal system
1) it is one body of power supply lock and battery box lock, more safe.
3 power and speed:
1) 350W, directly, brushless, magnetism, motor, output torque 35nm in the most.
2) 2: 16 high speed foot tread chain piece transmission system + 1: 1 brainpower assistance drive system, many efficacy of speediness and save power and health body, more springiness ride in foot.
4, 48V10AH, airproof valve type, plumbum acid patent battery:
1) high efficient motor with small current run, more long battery life.
2)entirely brainpower charger, adpot unique Machining design for the battery, greatly improve the charging times and quantity of the battery.
3) brainpower charg in reverse system, while braking, the electricity emanatored from motor will be callback. So it will add the runing distance, also reduce the charging times. Prolong the battery life.
5, thumbprint
1) mode, novelty, streamline girder + a whole type of cloth rack
2) 18" big power magnetism motor, streamline style figure
3) save power: Stop and lock for one times, convinence
4) addition thick on the seat mat for the cloth rack, close protect, more safe easy for the back man.
5) the electrical outlet have guard against loose structure, also prevent the vehicle basket from the steal.
