Home Panan Jiadesheng Industry And Trade Co., Ltd. Ew 150cc ATV Quad, CE Approval, Chain, Utility ATV/Quad Wv-ATV018

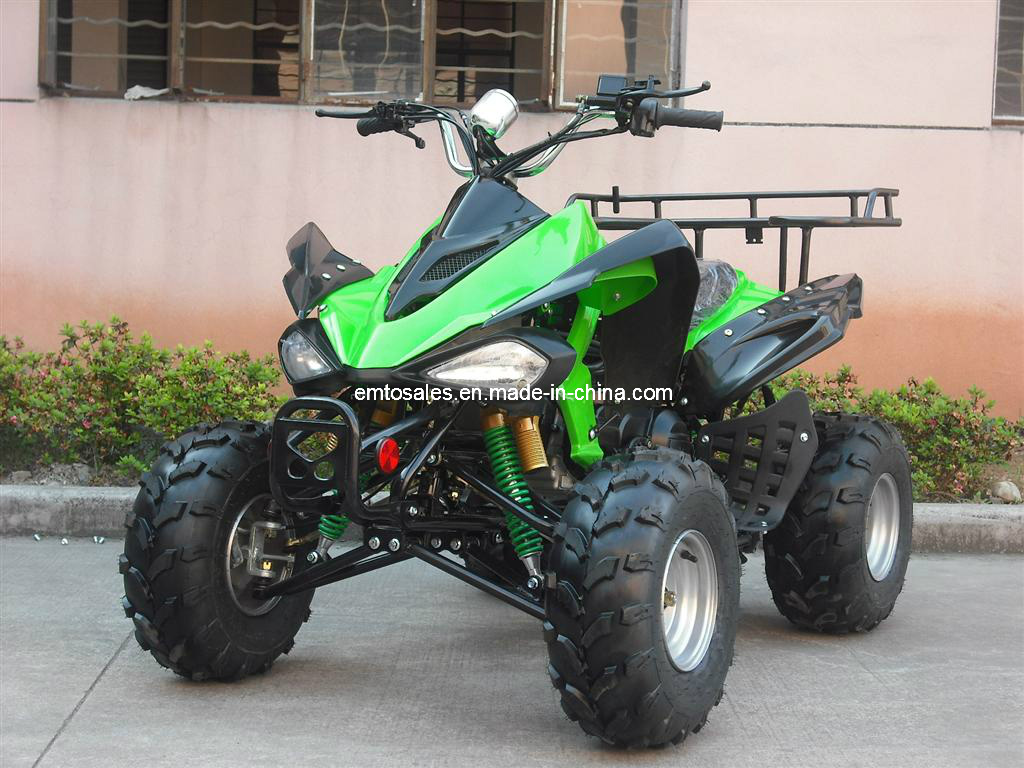

Ew 150cc ATV Quad, CE Approval, Chain, Utility ATV/Quad Wv-ATV018

Ew 150cc ATV Quad, CE Approval, Chain, Utility ATV/Quad Wv-ATV018
Price: US $ 685-750/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union

Specifications

Prod Model: wv-atv018
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 150cc-250cc Can Choose
Engine: Normal 150cc or Gy6 150
Transmission System: Chain Drive
Transmission Type: Automatic
Certification: ISO9001
Engine Type: 4 Stroke
Fuel: Gas / Diesel
Displacement: 150CC
Structure: Without Door
Maximum Speed: 50-75 km/h
Brake Type: Drum/Disc

Product Description


Model No. : WV-ATV-018
Engine:
l         150/200/250CC, 4-stroke, single cylinder, air-cooling
l         Max. power: 13kW/8500rpm
l         Starting system: electric       Ignition: CDI
l         Transmission: 5 speeds forward / 1 reverse
Chassis:
l         Brakes (Front/rear): drum/drum
l         Absorber (front/rear): Air absorber
l         Tires(Front/Rear): 19 x 7-8 /18 x 9. 5-8
l         Drive train: Chain      Fuel capacity: 6.8L
Dimensions:
l         Wheel base:790mm   Seat height:600mm
l         Ground clearance:150mm
l         N.W.:220kg   G.W.:260kg
l         Iron frame and box
Other:
Max speed: 80km/h   Max load capacity: 210Kgs
20pcs :20pcs   40hq :66pcs

ATV-018 Engine: 1. GY6/150, 4-stroke, single cylinder, air-cooling
2. Starting system: electric and kick 3.Drive train: chain
4. Transmission:1 speeds forward / 1 reverse Clutch: manual
Chassis: 1.  Brakes (Front/rear): drum/Hydraulic disc
2.  Absorber (Front/rear): ballonet – absorber / Hydraulic - absorber
3. Tires(Front/rear): 19*7.0 0-8 / 18*9.5 0-8
4. Fuel capacity: 4L
Dimensions: 1.Seat height: 770mm   Wheel base: 770mm
2.l Radius of turning circle:1600mm 3. l Ground clearance: 90mm
4. l Products size:1660*1000*1100mm
5. l Max speed: 60km/h
6.l Max load capacity: 150Kgs
Packing: 1.l G.W:155kgs  N.W:140KGS 2.l Package measure:1500*8300*800mm
   container: Qty/20Fcl:20pcs   Qty/40HQ: 63pcs
