Specifications
Prod Model: |
ZW50QT-7L |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe |
Fuel Tank Capacity: |
5-8L |
Maximum Loading Capacity: |
<75kg |
Engine: |
4 Stroke |
Displacement: |
≤50CC |
Certification: |
EEC |
Max Speed: |
21-50km/h |
Product Description

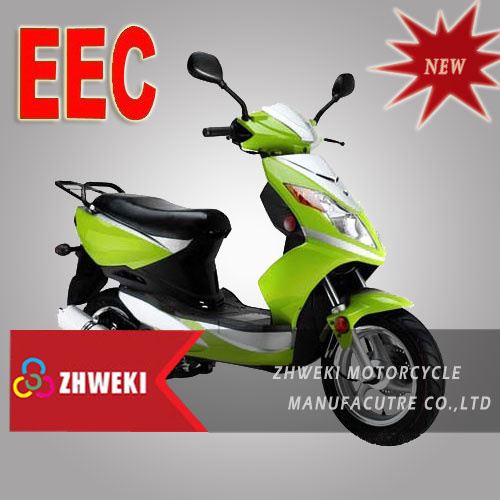

EPA scooter with stylish design, cool feeling, good quality, competitive price, enjoy your speed...
Model | ZW50QT-7L |
Dimension(L*W*H,mm) | 1830 x695x1160 |
Wheel base(mm) | 1285 |
Min clearance(mm) | 100 |
Net weight(kg) | 90 |
Max load(kg)/Max speed(km/h) | 70 / 60 |
Consumption(L/100km) | 2.1 |
Oil tank capacity (L) | 5 |
Brake(Fr./Rr.) | Disk / Drum |
Tyre size(Fr./Rr.) | 120/70-12 |
Wheel Hub(Fr./R.r) | Aluminium |
Wheel atmosphere(Fr./Rr.)(KPa) | 190/220 |
Front /Rear suspension | Hydraulic spring / spring |
Engine model / Type | 139QMB/Single cylinder, four stroke ,air cooled |
Displacement(ml) / bore x stroke | 49.6cc / 39 x 41.5 |
Starter/ Ignition system | kick/electrical start / CDI |
Max power(kw/ r/min) | 2.8/8000 |
Max torque(N.m/ r/min) | 3.4/6500 |
Container Loading Quantity |
1¡¢Disassemble front panel,handle bar,rear carrier,front wheel etc. | 1700x570x870mm |
20"GP container: | 26pcs |
40"HQ container: | 84pcs |
2¡¢Disassemble front wheel | 1730x570x1080mm |
20"GP container: | 24pcs |
40"HQ container: | 52pcs |
