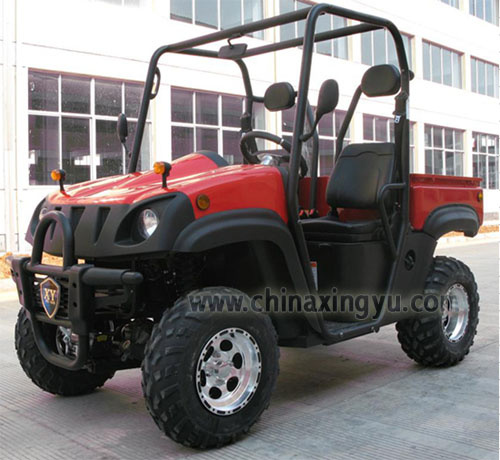

EPA GO Kart (XY-UTV500A)

Specifications

Prod Model:	XY-UTV500A

Product Description

Detailed Product Description
Product dimensions: 2, 690 x 1, 280 x 1960mm
Minimum turning radius: 4650mm
Transmission: C. V. T and P/R/N/L/H
Wheelbase: 1820mm
Wheel span: (a) Fr: 1036mm (b) Re: 1040mm
Brake type: F: Dual disc brake R: Dual disc brake
Minimum ground clearance: 195mm
Shaft drive
4x4 and 4x2 switchable
4-wheel Independent suspension
Engine specifications:
Type: Liquid-cooled, four-stroke and SOHC
Bore x stroke: 87.5 x 82mm (3.44 x 3.23 inches)
Displacement: 493 ml
Starting mode: Electric and recoil starter
Cylinder arrangement: Forward-inclined single-cylinder
Capacities:
Fuel tank: 22.0L
Oil consumption for 100 kilometers: 9.8L
Battery: 12V
Maximum speed: 70kph
Maximum loading capacity: 500kg
Net weight: 550kg
Packing: Hob and carton
18PCS/40'HQ
