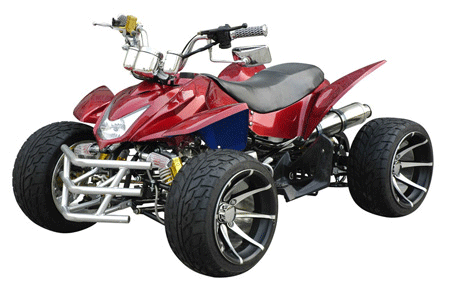

Home Zhejiang Pailision Industry Co., Ltd. EPA ATV (WJ110ST-10)
| Prod Model: | WJ110ST-10 |
|---|
Product Description
1. Engine type: 48CC/ 72CC/ 86CC/96CC/ 107CC /124CC2. Max torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
3. Max power: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm, 3.6kw/7500rpm,
4. Ignition type: CDI
5. Transmission: 4-speed, semi-automatic reverse
6. Brake (Front/Rear): Disc/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 235/30-12. Rear tires spec: 235/30-12.
12. Vehicle dimensions: 190x110x103cm
13. Wheel base: 1300mm
14. Seat height from ground: 63cm
15. Ground clearance: 80mm
16. Load capacity: 150kg
17. Fuel tank capacity: 5L
18. Gross weight in carton: 160kg
19. Net weight: 140kg
20. Packing size: 155x83x71cm
Conveyance:
33PCS/20ft 66PCS/40ft
66PCS/40'HQ
Zhejiang pailision industry Co., Ltd. Has some collectivize scope advantage. Our group industry was related to Production, International Trade, Real Estate, Financial Investment etc. Its general headquarters are located in Yongkang City Zhejiang Province, which has always enjoyed the honorable title of being "Metropolis of Hardware " and "City of Hundred Industries". The factory covers a modernized area of 160, 000 m 2 and owns fixed assets of 318 million. In 2004 the gross output value of the group company reached 700 million, It has been chosen as "Trustworthy Demonstration Enterprise in Zhejiang Province" and "AAA Grade Enterprise of Honoring Contract and Keeping Its Promise in Zhejiang Province". It is one of the key enterprises in Yongkang City.
