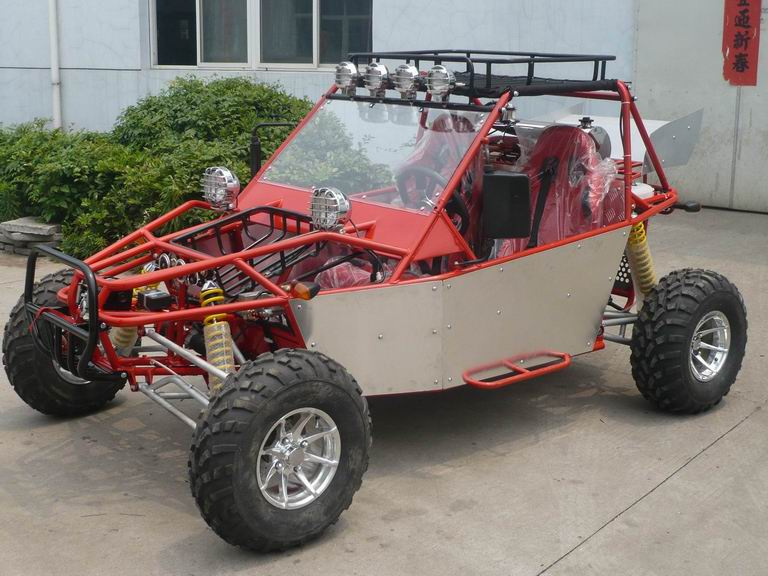

EPA Approved Go Kart with Cherry Power (NY1100-2C)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
| Pay Type: | L/C,T/T |
| Prod Model: | NY1100-2C |
|---|
Product Description
SpecificationModel: NY1100-2C(EPA AND CARB)
Engine Information:
Enginr Size CHERRY ENGINE, Electric Fuel Injection
Displacement 1050ml, Gasoline engine
Max. Power: 50kw(5500+/-50rpm)
Max. Torque: 90N. M(3500--4000rpm)
Max. Speed: 120 km/h, 62.1mile/h
Climbing Capacity ≤45 temperature
Cooling Water Cooled
Carburation: 4 Cylinder, 4 stroke
Ignition key
Starter electric
Fuel tank: 30L/5.7Gallon Safety tank
Electric: 12V 32Ah Battery, 12V 55W headlight, 12V 5W Tail lights
Instrucmentation Speedmeter, Odometer, Fuel gauge, Tachometer
Drive Train:
Transmission Manual
Steering Rack and Pinion 2.5 Turn lock to lock
Gears/patten 4 forward gear+Reverse
Driveline shaft
Gear Ratio 1st-3.909, 2nd-2.800, 3rd-1.800, 4th-1.036, R-3.583
Main Reduction Ratio 4.412
Lubrication Forced&Splash, 2.8L, (Type: SE15W/40 Summer, SE10W/30 Winter)
Clutch Hydraulic, diaphragm spring
Chassis and Suspension:
Front suspension Dual Wishbone Swing arm(independent)
Rear suspension Trail Arm(independent)
Shock Absorber Gas Coil Cover Shocks
Brake, Rim and Tire, Winch:
Front Brake Hydraulic Disc
Rear Brake Hydraulic Disc
Front tire, Rim 27*8-10, 12" Aluminum Rim 250kpa
Rear tire, Rim 27*11-12, 12" Aluminum rim 250kpa
Winch 3000 Pounds Big power Winch
Seat Adjustable, Bucket type, Head Rest, 5 Point Safety Harness
Tubing and Paint:
Tube 32mm steel tube, 2mm gauge
Dimensions, Other Specs:
OA dimension L*W*H: 2930mm*1710mm*1640mm
Wheelbase: 2230mm
Frontwheel Track: 1505mm
Rearwheel Track: 1455mm
Min Ground Clearance: 303mm
Climbing Capacity: 10 temperature
Min Turning Radius: 4.5m
Braking length: 7m/30km/h
Max/Loading Capacity: 175kg
Min Fuel Consumption Ratio: 295g/(kw. H)
Box Dimensions:
Carton size L*W*H
Gross weight: 1156.9lbs/523kg
Shipping Information:
Units per 20''GP 6pcs
Units per 40''GP 12pcs
Klung Industry Co., Ltd, a leading Chinese dune buggy manufacturer established in 2002, keep developing the latest technology on buggy to exceed the expection of customers.
All the buggies are designed together with the international partners, featuring the wordwide latest technology and concept of design, using the best parts available in China, stand for the highest level in China.
The development and Research team have most professional mechanical and vehicles knowledge, plenty of experiences on go kart development. They understand the importance of customers feedback and would like to listen.
Our company invested a lot of money on bringing new equipments and most of the vehicles parts are self-made by us, guaranteeing the best quality and cheapest price, which make our products most competitive.
Our company have standard product line, strictly applying ISO 9001 International Quality Control System, which ensure we can deliver your goods timely and outstandingly.
Our company have special test meters and maturity production flow management plan, which eliminate every possible quality flaw before shipment.
Klung is a big family where everyone works hard together toward the same target, regardless of the background difference.
Our full experienced sale and service stuff, are ready every time to answer your questions, to provide the best support to for after sale service
We keep joining all kinds of race events to prove our quality and make every details perfect.
Join us, let us share the fun of success.
Klung buggy, the Real Man's Toy, The Real fun of success!
