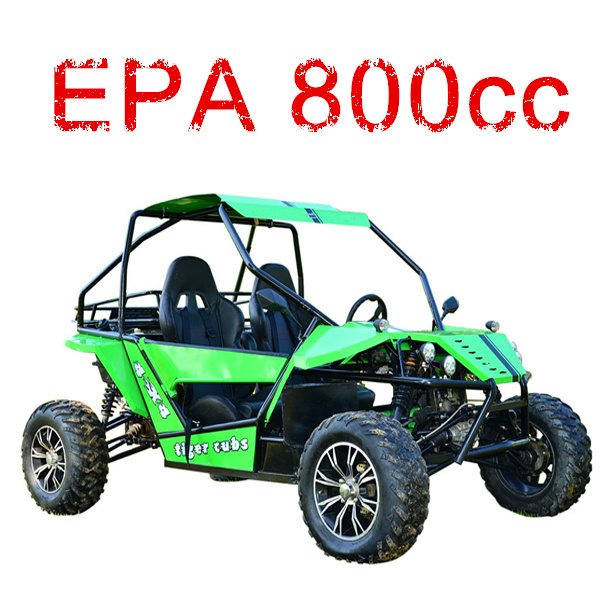

EPA Approved 800cc 4X4 Shaft Buggy

Specifications

Prod Model:	DMB800-01
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Age:	Adults
Transmission:	Shaft
Start-up:	Electric
Certification:	EPA
Maximum Speed:	>90 km/h
Kind:	Vari-Speed
Condition:	New
Usage:	Sport
Color:	Black / Red / Blue
Displacement:	800cc

Product Description

                                                                   .
DMB800-01  800cc  4x4 shaft drive

Engine type	2v91mw, double -cylinder, 4-stroke, sohc, water-cooled
Displacement	800cc
Valve configurations	8-valve
Compression ratio	10.3:1
Max.Torque	73n.M/5000 rpm
Max.Power	44kw/6000 rpm
Ignition type	Idi (inductive discharge ignition )
Spark plug	Ngk  dcpr8e
Gear oil	400ml    xp-s  gl-5 gear oil
Transmission type	L/h/n/r
Product dimensions	L3150 mm,w1720mm,h1700mm
Wheel span	Front 1460 mm   rear 1420 mm
Wheel base	2030mm
Front tire	27*8-14
Rear tire	27*11-14
Ground clearance	320mm
Minimum turning radius(mm)	4800mm
Max.Speed	100km/h
Steering system	Pinion and rack   (optionally eps)
Front suspension	Double arm independent suspension
Rear suspension	Double arm independent suspension
Brake system	Dual hydraulic disc
Fuel capacity	32l
Curb weight	530kg
Cross-country power	Approach angle 900  removed angle900     passing angle 330
Quantity:	40hq    12pcs
Color:	Red  orange  white  blue  green      (custom made)
