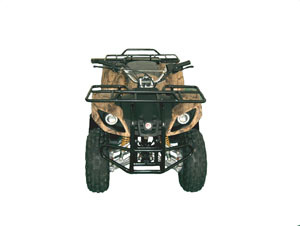

EPA 90cc ATV

Specifications

Product Description

Engine: 90cc 4 stroke motor, air cooled;
Transmission: Fully automatic;
Spark plug: T1136/T1137;
Ignition Type: C. D. I;
Brake(front/rear ): Drum/Disk;
Bore X stroke(mm): 47X49.5;
Poston displacement(cc): 85.9
Compression Ratio: 9.1: 1;
MaximumPower(kw/r/min): 4.6/8500;
Maximum Torque(N. M. /rpm): 6.0/8500;
Transmission system: Chain drive;
Ground clearance(MM): 100;
Key ignition: Electric start;
Engine oil: 1L;
Tyre: Front: 19X7-8, Rear: 18.5X9.5-8;
Oversize: L1620 x W900 x H950mm;
Dry weight: 140KG
