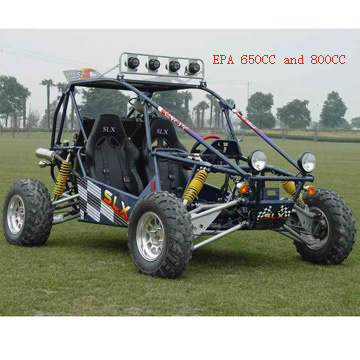

EPA 800CC Go Kart (FY-GC-238)

Specifications

Prod Model:	FY-GC-238

Product Description

FY-GC-238 (EPA 800cc Go Kart)
Features:
1) Maximum load: 1,000kg
2) Top speed: 120km/h (or limited as customers require)
3) Engine type: 3-bore, 4-stroke, liquid-cooled
4) Bore x stroke: 68 x 72mm
5) Displacement: 0.796L
6) Carburetor: HGH201
7) Power: 29.5kW/5,500+50rpmin+5%
8) Max. torque: 62N.m/3,000 - 4,000rpm
9) Starting mode: electric
10) Starting: <5s
11) Ignition: CDI
12) Lubrication: force and splash
13) Transmission: manual clutch, 4 shifts / reverse
14) Spark plug: T4196J
15) Plug gap: 0.7 - 0.8mm
16) Fuel tank: 28.0L
17) Compression ratio: 9.4: 1
18) Climbing: 30 degrees
19) Battery: 12V, 36Ah
20) Head light: 12V, 150W (both)
21) Tail light: 12V, 80W / both
22) Brake track: <7m@20miles/h
23) Brakes (front / rear): hydraulic disc, right foot control
24) Front suspension: independent dual A-Arm
25) Rear suspension: longitudinal control arm
26) Final drive: shaft drive
27) Wheelbase: 2,670mm
28) Front track: 1,690mm
29) Rear track: 1,650mm
30) Ground clearance: 280mm

Outer packing:
Steel frame with carton
Carton dimensions: 2,850 x 1,150 x 860mm

Conveyance:
Qty/20' FCL: 8 units
Qty/40' HQ: 24 units
