Specifications
Prod Model: |
DL24250-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimension: |
104*50.5*88.5cm |
Max. Climbing Ability (Loaded): |
20% |
Passenger Capacity: |
1 |
Chassis: |
Steel |
Net Weight: |
47kg |
Motor: |
Brush |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Voltage Of Battery: |
24V |
Power: |
200-250W |
Certification: |
CE |
Maximum Loading Capacity: |
75-120kg |
Wheel Hub: |
Alloy Hubs |
Folded: |
Folded |
Charging Time: |
6-8h |
Part: |
Motor |
Running Distance: |
10km |
Max Speed: |
7.5km/H |
Wheel Size: |
200*50 |
Product Description

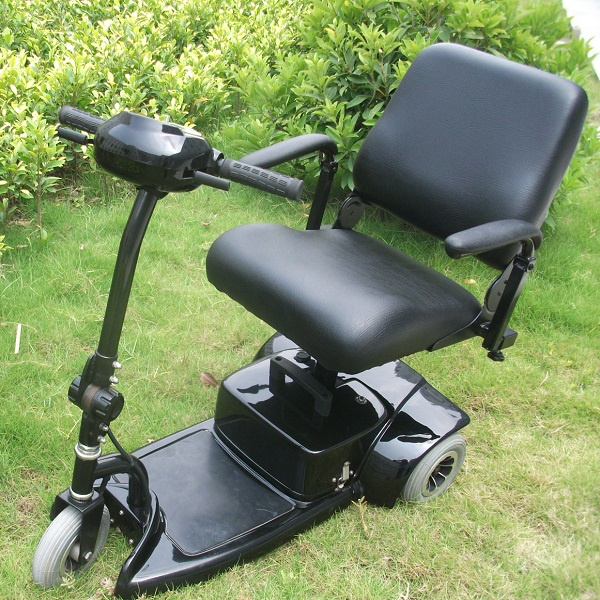

electric three wheeled scooter for handicapped (DL24250-1)
three wheeled scooter features:
1.It is popular with Senior people;Mainly used on the park,travel industry, Supermarket and so on;To transport people in community
2.Well design of the package, so the goods can be protected well.
3.Speed can be adjusted.
4.Has CE certificate for whole carts and for main parts also pass CE, UL,SAA for different carts.
three wheeled scooter speicifcations:
Model | DL24250-1 |
Passenger Capacity | 1 |
Power supply |
Battery | 12V12AH*2 |
Motor | 24V200W |
Controller | PG, 24V-45A |
Charger | 24V 2A |
Performance |
Max. Speed | 7.5KM/H |
Max.travelling range | 10KM |
Climbing capactity | 20% |
Brake Range | 3M |
Minmum turning radius | 1M |
Net Weight | 47KG |
Gross Weight | 52KG |
Carrying capacity | 90KG |
Dimension |
Tyre | 200*50 |
Normal dimensions | 1065*565*880MM |
Folded dimensions | 1000*565*700MM |
Carton dimensions | 1080*560*580MM |
Qty per container | 60PCS/126PCS/168PCS |
Optional parts | Rear basket, walking stick bracket |
Marshell electric vehicles company profiles:
Marshell was founded in 2002, as a world-class electric vehicle manufacturer, it specilizes in producing and selling golf cars, sightseeing cars, scooters, golf trolly and utility vehicles.
We have three facilities in Guangdong and Shanghai, with 210000 square meters workshops, over 100 experienced engineers and 1,200 workers. Our daily production capacity is 100 units of big vehicles and 500 units of scooters.
Marshell has been certified by ISO9001/ISO14001 and CE. Moreover, every vehicle is marked with World Manufacturer Identifier (WMI) and VIN.
With a common pursuit of green world and energy-saving transportation, Marshell is devoted to offering you top quality electric vehicles with competitive price and friendly after-sales service. ODM and OEM orders and all welcome.
Contact us for more details now!
