Specifications
Prod Model: |
TURTLE01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tyre Type: |
350-10 |
Wheel Hub: |
Alloy Hubs |
Voltage Of Battery: |
60V |
Folded: |
Unfolded |
Motor: |
Brushless |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Power: |
801-1500W |
Maximum Loading Capacity: |
75-120kg |
Running Distance: |
45-60KM |
Charging Time: |
8-10h |
Certification: |
ISO |
Max Speed: |
41-60km/h |
Wheel Size: |
10' |
Brake: |
Front Disk / Rear Drum |
Product Description
1) Basic Specification
************************

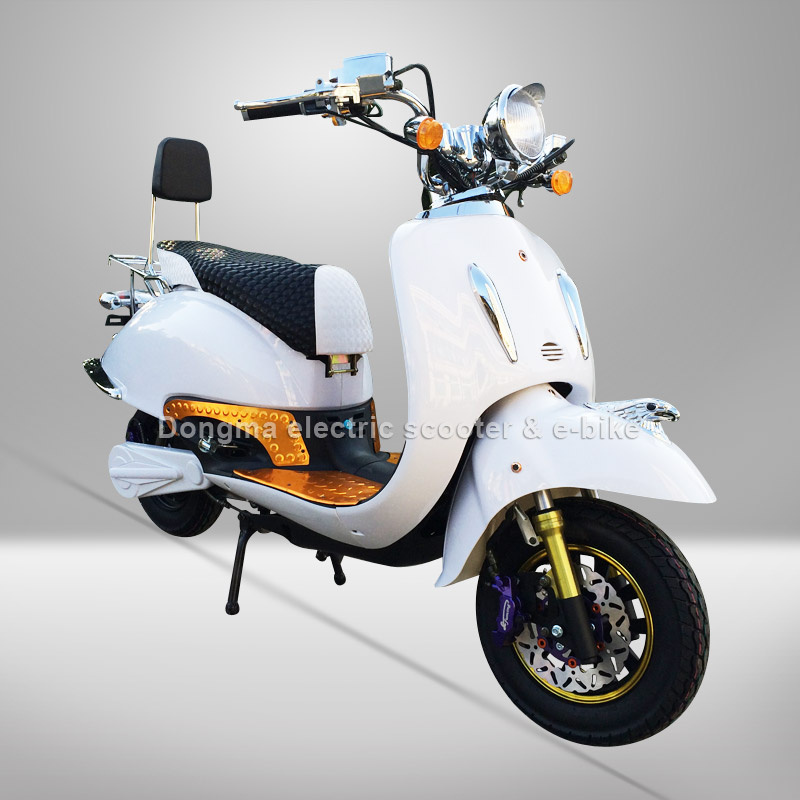

Model: TURTLE 01
Power : 800W Motor brushless
Battery: Lead-Acid battery 60Vor72V 20AH
Lithium Battery 60Vor72V 20AHor40AH
Dimension (mm): 1880*590*1130
Wheelbase (mm): 1330
Min clearance (mm): 130
Max speed (km/h): 50
Net weight (kg): 98 with battery
Brake (Fr. /Rr. ): Disk / Disk (Rear drum brake available)
Wheel hub (Fr. /Rr. ): Alu.
Tyre size (Fr. /Rr. ): 350-10
Shock Absorber: High quality suspension
Motor power: 800W
Max drive distance: 55km (a charge)
Charger time: 6-8 hours
Charger input : AC100-240V
Alarm: Remote alarm system
Accessories: Charger, mirrors, tool bag
Packing size: 1950*600*1150
20# container: 18 units
40 HC# container: 48 units
-----------------------------------------------------------------------------------------------
2) Quality Control
**********************
1. Our products are targeted for the overseas demanding market, and we have a strong sense of responsibility for the quality, we consider quality as our life.
2. The only standard to choose parts' suppliers is who has the same principle about Quality as us.
3. We carry on continusly training our staffs, in order to ensure they have the ability to produce high quality products.
4. All the components must be checked carefully before assembling twice,A incoming inspection and B inspection before online producing.
5. We have special inspector for the last checkout to insure that the cargoes willbe satisfied with you.
-----------------------------------------------------------------------------------------------------------
3) Warranty
***************
All of our ebikes and escooters are guaranteed and backed by our technical assistance and considerate service. During the guaranteed period, any of the parts could be replaced upon receipt of your photos for proof in time.
A. The frame 1 year
B. Front fork 1 year
C. Gears, bearings, 12 months
D. Handle bar, stem, brakes (excluding brake shoes and pads) 12 months
E. Battery, charger, motor 10 months
F. Controller 1 year
G. Paintwork (excluding deliberate or accidental damage) 1 year
The warranty is only valid within the country the bicycle was purchased. Whereas, it is not valid for normal wear, misuse or neglect, improperly operation, damage or failure due to accident, parts or accessories not originally intended or compatible.
We Are The Professional Electric Bicycle and scooter Manufacturer In China, Has Engaged In Ebike Field For Over 10 Years. Previously we focused on China Domestic market and did good performance by good products and competitive price, and now we have the confidence on better performance for overseas market by our more hard work.
P.S. OEM Orders are also Welcomed According To Your Detail Requirement.
-------------------------------------------------------------------------------------------------------------------------------------------
Some rear photos for your reference :
Model: |
TURTLE01 |
|
|
Motor power: |
800W, CPU Brushless motor |
Climbing angle: |
15° |
Front brake |
Disc brake |
Rear brake: |
Disc brake or Drum brake ,EABS |
Speed: |
50Km/H (31Mph) |
Run distance: |
75-80Km (46.5-49.6Miles) |
Battery capacity: |
72V20AH or 60V20AH |
Instrument: |
LCD communication display |
Body size (L*W*H): |
186*63*109cm |
Wheel size: |
10" |
Loading: |
150Kg (284Ib) |
Seat above ground: |
77cm |
N.W(with battery): |
122Kg (270Ib) |
Weight of battery: |
45Kg (99Ib) |
G.W: |
132Kg (290Ib) |
Packing (L*W*H): |
195*60*113cm |
Container: |
18PCS/20"GP, 48PCS/40"HQ |
Battery name: |
Sealed Lead-acid battery (Maintainable) |
Charge time: |
4-10 H |
Charger input: |
AC100-240V, |
