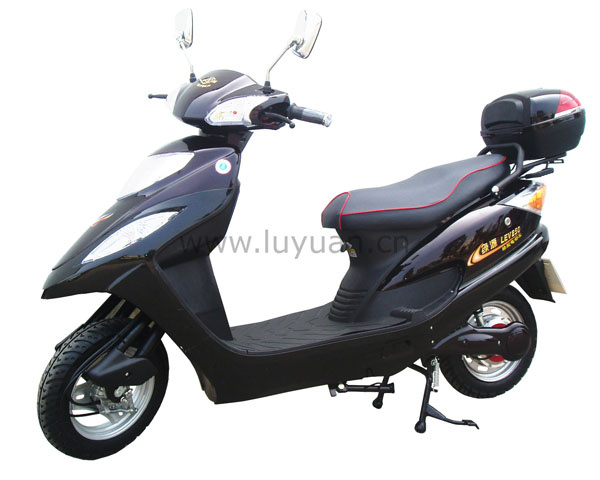

Electric Scooter (LEV006)

Specifications

Prod Model:	LEV006

Product Description

Motor power: 500W, CPU motor

Climbing angle: 15-20

Torque: 32-55 Nm

Front brake: Drum brake

Rear brake: EABS (electric absorption braking system, foot brake)

Speed: 25-35Km/H (13.6-19.8mph), double speeds

Battery capacity: 48V17AH

Other parameter

Body size (L*W*H): 170*64.5*101cm (67*25.3*39.7ins)

Wheel size: 10*3.00

Loading: 200Kg (441 lbs)

Seat above ground: 72cm (28.3 ins)

N. W(no battery): 54Kg (119 lbs )

Weight of battery: 26Kg (57 lbs)

G. W: 95Kg (209 lbs)

Packing (L*W*H): 179*55*113cm

Container: 24PCS/20GP, 52PCS/40GP, 52PCS/40HQ

Battery name: Sealed Lead-acid battery (Maintainable)

Run distance: 45-60Km

Charge time: 3-8 H

Charger input: AC100-240V, BM-online (battery maintained while charging)
