Specifications
Prod Model: |
ES-008 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Es-008 |
Controller: |
Brushless Controller |
Dashboard: |
Common Meter |
Charger: |
110V60Hz/220V50Hz |
Lamp: |
Common Bulb |
Front Fork: |
Hydraulic Pressure |
PAS: |
with Pedal |
Throttle: |
Twist Intelligent Speed Control |
Net Weight: |
75kg |
Gross Weight: |
80kg |
Motor: |
Brushless |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Certification: |
ISO |
Maximum Loading Capacity: |
≥120kg |
Wheel Hub: |
Lightweight Alloy Hubs |
Wheel Size: |
16" |
Folded: |
Unfolded |
Part: |
Charger |
Running Distance: |
70km |
Brake: |
Front Disk Brake ,Rear Expanding Brake |
Max Speed: |
25km/H/32km/H |
Voltage Of Battery: |
48V&60V |
Power: |
200W~500W |
Charging Time: |
8~10hours |
Product Description

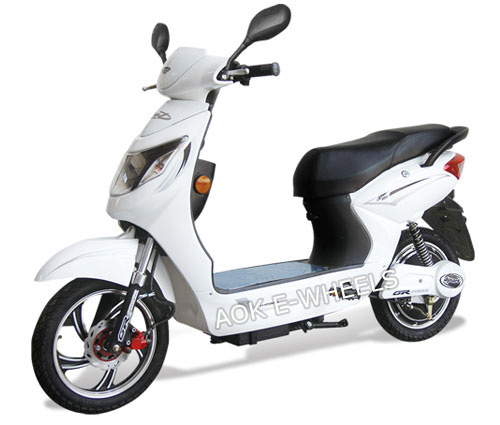

Electric Scooter, E-Scooter Electric Mobility Scooter with Pedal
Model No.:ES-008
Certificate:CE/ISO
Motor:200W~500W
Battery:48V20AH/ 60V20AH sealed lead-acid battery
Charger:110V60HZ/220V50HZ
Cotroller:Brushless controller
Gross weight:80kg
Net weight:75kg
Delivery time:15 days
Color:Customized
Specification
Specification Details: | Motor | Brushless hub motor 200W/250W/350W/500W |
Dashboard | Common meter |
Controller | Brushless controller |
Charger | 110V60HZ/220V50HZ |
Charging time | 8~10 hours |
Battery | 48V20AH/ 60V20AH sealed lead-acid battery |
Lamp | Common bulb |
Performance & Main components
Performance & Main components: | Max.speed | 25km/h;32km/h |
Range | 70km(48V20AH)(distance by riders weight,terrain,road sufurface etc.) |
Max load | 120KGS |
Tyres | 16"x2.5 |
Front fork | Hydraulic pressure |
Front brake | Disk brake |
Rear brake | Expanding brake |
Brake lever | Cut-off when braking |
PAS | With pedal |
Throttle | Twist intelligent speed control |
Different colors are available |
Packaging&Delivery
Packaging Details: | Unit packaging | Each in a carton box |
Net weight | 75kgs |
Gross weight | 80kgs |
Export carton dimension | 163.3×36.7×99.2cm |
Delivery Details: | 15 working days for samples, 20~25 days for bulk. |
Container
1x20'footer FCL quantity :47 pcs
1x40'footer FCL quantity :100pcs
1X40'HQ:100 pcs
Business Terms
1.The price above are based on FOB Ningbo(Zhejiang Province,China).
2.Lead time:15 working days for samples, 20~25 days for bulk.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are both acceptable!
