Specifications
Prod Model: |
TR212 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Riding Mileage: |
15-20km |
Tire Size: |
6.5 Inch |
Color: |
Red, Black, Blue, White, Yellow |
Product Description

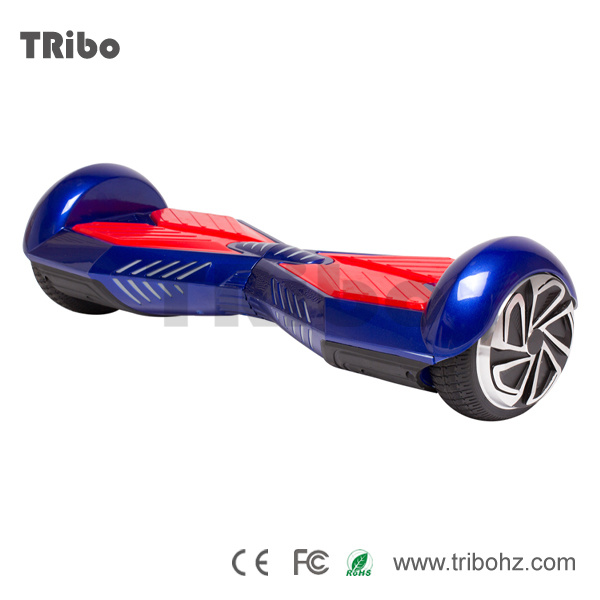

TR212 Self-Balance Scooter
Features:
1. Imported MCU PCB Control Board, Latest control system design.
2. Adopt latest imported Self- Balance system to realize auto balance.
3. Two separately wheels can work independently of each other. Each wheels has its own motor and gyroscope system to realize writhe performance and the biggest enjoyment.
4. Running LED indicator support. When stand on it, the running LED will be lighten up. When the running system meet wrong operation, the LED light will turn to red.
5. Installed with battery LED display board. Green LED light: Power full; Yellow LED light: Power down to 50%;
Red LED light: Power down to 20%. It should be recharged when the LED light becomes to red.
6. High Performance rechargeable Li-ion battery
7. Nature rubber tires with perfect performance to ensure run well.
8. Environment friendly. The Greenest way to go out.
9. Special safe board to protect battery from over charge or over discharge.
10. The maximum limited speed at 10km/h to ensure the safety.
11. The max climbing Angle at 15 degree.
12. Fashionable appearance design and can customized for different colors.
Specifications:
Control system: | Imported gyroscope, Imported MCU PCB Control board, Latest control system, Electric machinery lock-rotor protection. |
Electric machinery: | Brushless electric machinery, 250Wx2 |
Riding Mileage: | 15-20km |
Battery voltage: | 36V |
Battery volume: | 4.4AH |
Battery quantity: | 2 batteries parallel connection/set, Total 10 sets (20 batteries) series connection |
Charging time: | 120-180 min |
The charging voltage: | Input: AC240V, 50-60HZ Output: 42V, 1-2AH |
Battery Spec.: | Li-ion Battery by Samsung or Sony for optional Lead battery for optional |
Maximum speed: | 12km/h |
Maximum climbing angle: | 15 degree |
Maximum load ability: | 120kg |
Tire size: | 6.5 inch |
Tire spec: | Nature Rubber, solid tire |
Pedal ground clearance: | 3cm |
Net Size: | 59*20*20cm |
Net weight: | 10.5kg |
Carton package size: | 1pc/carton, 66x26x27cm |
Gross weight: | 12.5kg |
Accessories: | Charger, User's Guide, remote control for optional |
EMI: | CE, ROHS |
Use Instruction:
Step 1. Put the scooter on flat ground and turn the power on.
Step 2. Put one foot on one pedal and will run thebalance system and indicator light will turn to green, after the system enters the self-balancing, then put the other foot on the other pedal.
Step 3. Clamp your scooter firmly with your shank and keep your body vertical.
Step 4. Keep balance through control the gravity of your body.
Step 5. Steer the scooter by lean your body forward, backward, left or right to speed up, slow down, turn left or right.
Warning Remarks:
1. Please read the user' guide carefully to learn the scooter.
2 .You are recommended to wear helmet, elbow guard, wrist guard, kneecap, and other protective clothing to prevent yourself from hurts.
3.Please make sure that the your scooter is powered, the tire is full and other accessories are fixed before riding.
4.Please play it on flat ground.
4. Do not ride exceed the maximum speed to ensure the safety.
Packaging details:
Standard export carton. 1pc/carton, carton size: 66x26x27cm
Load quantity: 576pcs/20' container
1152pcs/40' container
Retail packing is available. We can customize labels for you, with your company logo and other requirements. Master Carton is available and printed to fit your product. Or per your requirements.
Transportation: We can book vessel at Shanghai port by long time cooperated logistics company and we also can deal with customer's appointed forwarder.
Our services:
Tribo has established its own R&D department and has established long-term cooperation with professional factories in China. OEM and ODM is available for Tribo. Strict Quality Control to ensure bulk goods quality.
