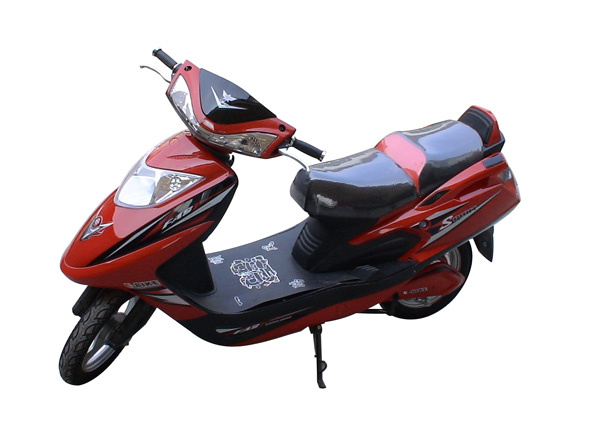

Electric Motorcycle (TDP3Z)

Specifications

Product Description

Main Technical Parameters of the Whole Vehicle
Appearance Size(L*W*H) :1840mm*640mm*1112mm
Package Size(L*W*H) : 1830mm*560mm*1100mm
Wheel Base(mm) :1270mm
Net Weight(Kg):91.5 Kg
Gross Weight(Kg)(wooden case):111 Kg
Load(Kg): 90.5 Kg
Max Speed(Km/h): 40 Km
Driving Range(Km): 60 Km

Main Technical Parameters of Battery
Type of Battery: maintenance-free hermetic lead-acid storage battery
Capacity (Ah): 17AH 20AH
Typical Voltage(V) :48V
Main Technical Parameters of Motor
Type of Motor: Integrative wheel-hub motor
Rated Output Power(W):350-500W
Rated RPM(r/min):360
Rated Voltage(V):48V
Main Technical Parameters of Controller and Charger
Under-voltage Protective Value(V):42V
Over-current Protective Value(A):16A
Charging Voltage(V):58.8V-59.2V
Connection Voltage(V):55.2V-55.6V
Input Voltage(V):110V/220V
