Specifications
Prod Model: |
MS-002 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Ms-002 |
Certificate: |
CE/ISO |
Controller: |
Pg/Curtis |
Charger: |
24V5a Battery Charger |
Ground Clearance: |
100mm/ 3.94in |
Turning Radius: |
1.7m/66.92in |
Braking Distance: |
1.6m/63in |
Climbing Capability: |
15° |
Weight Capacity: |
160kg/352.74lbs |
Net Weight: |
105kg/231.5lbs(with 2 Batteries) |
Product Description

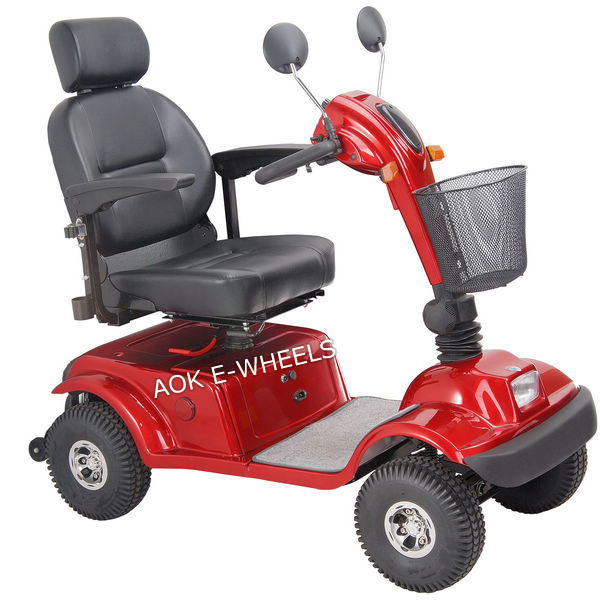

600W Taiwan Four Wheel Disabled Electric Mobility Scooter with PG/Curtis Controller
Model No.:MS-002
Name:600W Taiwan Four Wheel Disabled Electric Mobility Scooter with PG/Curtis Controller
Certificate:CE/ISO
Size:12"
Net Weight:105kg/231.5lbs(with 2 batteries)
Carton Size:1420 X 660 X 1250mm
Delivery Time:40 days
Color:Red ,Blue,Green,Silver etcs(Customized)
Specification
Specification Details: | Motor | 24V 600W (Made in Taiwan) |
Battery | 12V 40Ah(50Ah) x 2 lead acid battery |
Controller | PG/Curtis |
Charger | 24V5A battery charger |
Charge time | 6-8h recommended |
Front Tyres | 12"*4.00-4 |
Rear Tyres | 12"*4.00-4 |
Performance & Main components
Performance & Main components: | Max. forward speed | 12.5km/h(adjustable) |
Max. backward speed | 6-8km/h(adjustable) |
Ground clearance | 100mm/ 3.94in |
Turning radius | 1.7m/66.92in |
Braking distance | 1.6m/63in |
Climbing capability | 15° |
Packaging&Delivery
Packaging Details: | Weight capacity | 160Kg/352.74lbs |
Net weight | 105kg/231.5lbs(with 2 batteries) |
Battery weight | 13.8kg/30.43lbs x 2 |
Dimensions | 1420 x 660 x 1250mm |
55.9 x 25.98 x 49.21in. |
Delivery Details: | 40 days |
Payment Terms
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.
