Home Ningbo A-ok Trading Co., Ltd. Electric Mobility Scooter with Pg Controller (MS-006)

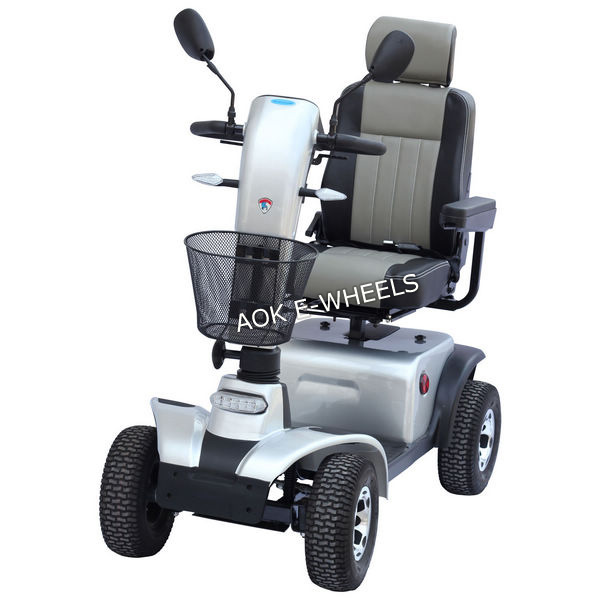

Electric Mobility Scooter with Pg Controller (MS-006)
| Price: | US $ 972-1070/Piece |
|---|---|
| Trade Terms: | CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Specifications
| Prod Model: | MS-006 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controller: | Pg/Curtis |
| Charger: | 24V 6A Battery Charger |
| Ground Clearance: | 80mm/3.15in. |
| Turning Radius: | 2.4m |
| Braking Distance: | 1.8m/70.87in. |
| Climbing Capability: | 15 Degrees |
| Dimensions: | 1300 X 710 X 1350mm |
| Running Distance: | <45km |
| Voltage Of Battery: | 24V |
| Maximum Loading Capacity: | ≥120kg |
Product Description
Four Wheel Electric Mobility Scooter with PG Controller (MS-006)Model:MS-006
Certificate:CE/ISO
Motor:24V 800W (Made in Taiwan)
Battery:12V55Ah x 2 lead acid battery
Controller:PG/Curtis
Charger:AC100-240V50/60HZ 6A
Net weight:132kg/291lbs(with batteries)
Gross weight:140kg/308.6lbs
Specification
| Specification Details: | Motor | 24V 800W (Made in Taiwan) |
| Battery | 12V 55Ah/75Ah x 2 lead acid battery | |
| Controller | PG/Curtis | |
| Charger | 24V 6A battery charger | |
| Charge time | 10~12h recommended | |
| Front Tyres | 12"*4.00-4 | |
| Rear Tyres | 12"*4.00-4 |
Performance & Main components
| Performance & Main components: | Max. forward speed | 16km/h(adjustable) |
| Max. backward speed | 6~8km/h(adjustable) | |
| Ground clearance | 80mm/3.15in. | |
| Turning radius | 2.4m | |
| Braking distance | 1.8m/70.87in. | |
| Climbing capability | 15° |
Packaging&Delivery
| Packaging Details: | Weight capacity | 210kg/462.97lbs |
| Gross weight | 140kg/308.6lbs | |
| Net weight | 132kg/291lbs(with batteries) | |
| Battery weight | 37.2kg/81.84lbs | |
| Dimensions | 1300 x 710 x 1350mm | |
| 51.18 x 27.95 x 53.14in. | ||
| Delivery Details: | 40 days | |
Business Terms
1. The price above are based on FOB Ningbo(Zhejiang Province,China).
2:Lead time:15 working days for samples, 20~25 days for bulk.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.
