Electric Mobility Scooter Handicapped Scooter

Electric Mobility Scooter Handicapped Scooter
Price: US $ 195/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Specifications

Prod Model: TR212
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Riding Mileage: 15-20km
Tire Size: 6.5 Inch
Color: Red, Black, Blue, White, Yellow

Product Description

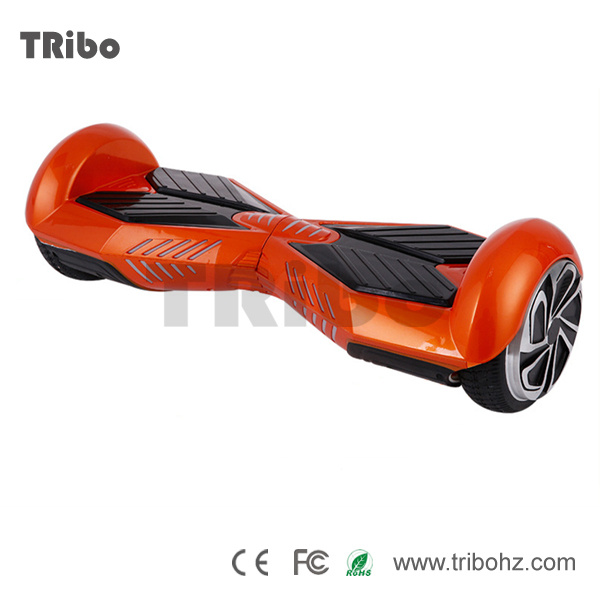

                     TR212 Self-Balance Scooter

Features:

1.     Imported MCU PCB Control Board, Latest control system design.
2.     Adopt latest imported Self- Balance system to realize auto balance.
3.     Two separately wheels can work independently of each other. Each wheels has its own motor and gyroscope system to realize writhe performance and the biggest enjoyment.
4.     Running LED indicator support. When stand on it, the running LED will be lighten up. When the running system meet wrong operation, the LED light will turn to red.
5.     Installed with battery LED display board. Green LED light: Power full; Yellow LED light: Power down to 50%;
Red LED light: Power down to 20%. It should be recharged when the LED light becomes to red.
6.     High Performance rechargeable Li-ion battery
7.     Nature rubber tires with perfect performance to ensure run well.
8.     Environment friendly. The Greenest way to go out.
9.     Special safe board to protect battery from over charge or over discharge.
10.   The maximum limited speed at 10km/h to ensure the safety.
11.   The max climbing Angle at 15 degree.
12.   Fashionable appearance design and can customized for different colors.

Specifications:

Control system:Imported gyroscope, Imported MCU PCB Control board,
Latest control system, Electric machinery lock-rotor protection.
Electric machinery:Brushless electric machinery, 250Wx2
Riding Mileage:15-20km
Battery voltage:36V
Battery volume:4.4AH
Battery quantity:2 batteries parallel connection/set,
Total 10 sets (20 batteries) series connection
Charging time:120-180 min
The charging voltage:Input: AC240V, 50-60HZ
Output: 42V, 1-2AH
Battery Spec.:Li-ion Battery by Samsung or Sony for optional
Lead battery for optional
Maximum speed:12km/h
Maximum climbing angle:15 degree
Maximum load ability:120kg
Tire size:6.5 inch
Tire spec:Nature Rubber, solid tire
Pedal ground clearance:3cm
Net Size:59*20*20cm
Net weight:10.5kg
Carton package size:1pc/carton, 66x26x27cm
Gross weight:12.5kg
Accessories:Charger, User's Guide, remote control for optional
EMI:CE, ROHS

Use Instruction:
Step 1. Put the scooter on flat ground and turn the power on.
Step 2. Put one foot on one pedal and will run thebalance system and indicator light will turn to green, after the system enters the self-balancing, then put the other foot on the other pedal.
Step 3. Clamp your scooter firmly with your shank and keep your body vertical.
Step 4. Keep balance through control the gravity of your body.
Step 5. Steer the scooter by lean your body forward, backward, left or right to speed up, slow down, turn left or right.

Warning Remarks:
1. Please read the user' guide carefully to learn the scooter.
2 .You are recommended to wear helmet, elbow guard, wrist guard, kneecap, and other protective clothing to prevent yourself from hurts.
3.Please make sure that the your scooter is powered, the tire is full and other accessories are fixed before riding.
4.Please play it on flat ground.
4. Do not ride exceed the maximum speed to ensure the safety.

Packaging details:
Standard export carton. 1pc/carton, carton size: 66x26x27cm
Load quantity: 576pcs/20' container
             1152pcs/40' container
Retail packing is available. We can customize labels for you, with your company logo and other requirements. Master Carton is available and printed to fit your product. Or per your requirements.

Transportation: We can book vessel at Shanghai port by long time cooperated logistics company and we also can deal with customer's appointed forwarder.

Our services:

Tribo has established its own R&D department and has established long-term cooperation with professional factories in China. OEM and ODM is available for Tribo. Strict Quality Control to ensure bulk goods quality.
