Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Load Capacity: |
100-200kg |
Climbing Capability: |
25 Degrees |
Product Description

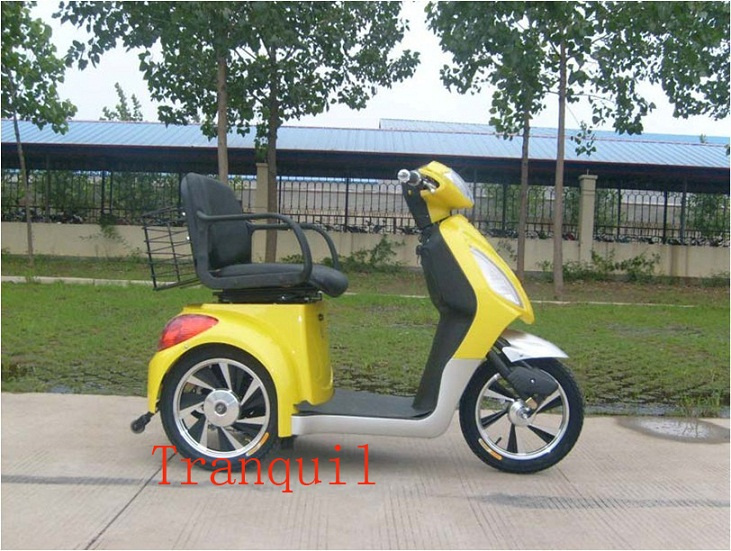

Model: Electric Mobility Scooter (AG-S18-C)
General Specifications:
Overall dimension (mm)1550× 740× 1050mm
Rated Loadability(kgs) 90kgs
Max. Speed (km/h) 25km/h
Distance per charge(KM) 36-60km
Charging time(hours) 6-8hours
Wheelbase (mm) 1400mm
Max. Climbing ability (loaded) 25%
Net weight 82kgs
Motor 500W/48V
Rated continuous output power(W) 500W
Rated output rotation speed(r/min) 300± 10
Rated voltage (V) 48V
Rated output torque(N. M) 12
Controller
Under-voltage protection value(V) 42± 0.5
Over-current protection value(A) 23± 1
Battery type
Battery capacity(Ah) 20AH
Nominal voltage(V) 48V
Weight of battery pack(kg) 28.8kgs
Charger
Input Voltage AC~110V/ 240V 50/60H
Max. Output power(w) 200W
Front brake drum brake
Rear Brake rear expanding brake
Wheel and Tyre 16*2.5"
Packing
Packing method Metal shelves.
