Electric Buggy
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | E-UTV |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: | 7.5kw E-UTV |
| Battery: | 6*12V Silicone Battery |
| Motor: | Kds Brushless AC Motor |
| Controller: | Sevcon Gen4 72V 350A |
| Passenger Capacity: | 2 |
| Range: | 135 Km |
| Max Speed: | 42km/H |
| Minimum Turning Radius: | 4.6m |
| Max Climbing Ability: | 16 Degree |
| Product Dimensions: | 2980 X 1470 X 1560mm |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EPA |
| Fuel: | Electric |
| Structure: | Two Side Doors |
| Brake Type: | Disc Brake |
| Condition: | New |
| Power: | >1000W |
| Brand: | Lannmarker |
| Maximum Speed: | 42 Km/H |
Product Description

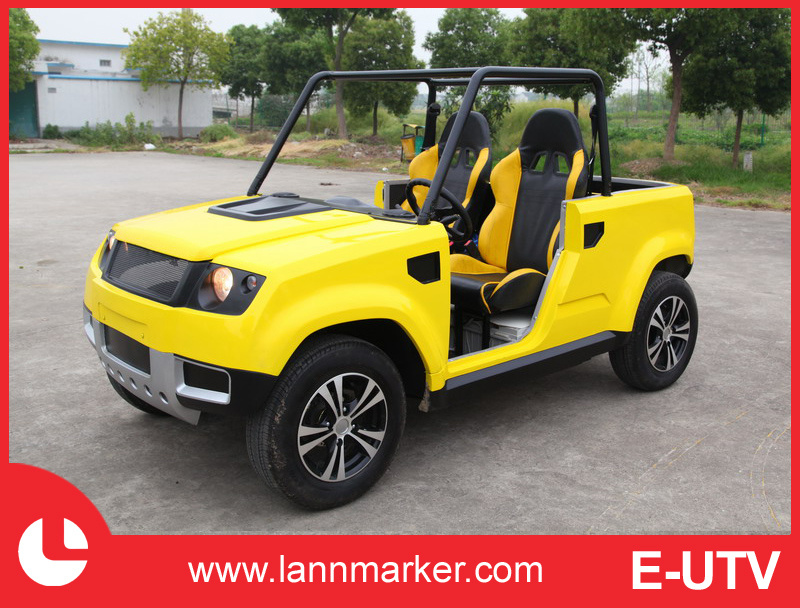

Electric buggy7.5KW Electric UTV with Sevcon Controller and KSD Motor
1. MAIN FEATURES
All Electric - Zero Emissions
SEVCON® GEN4 AC Controller
KSD® 7.5KW Brushless AC Motor
CHILWEE® Silicone Battery 72V
Electrical Power Steering (EPS)
EC Certification Waterproof Car Charger
3. SPECIFICATION:
| SPECIFICATION | |
| KEY COMPONENTS | |
| Battery | 6*12V, Chaowel Silicone Battery |
| Motor | KDS 7.5kw Brushless AC Motor |
| Controller | SEVCON GEN4 72V 350A (MAX 420A) |
| PERFORMANCE | |
| Passenger Capacity | 2 |
| Range | 135 km |
| Max Speed | 42km/h |
| Minimum Turning Radius | 4.6m |
| Max Climbing Ability | 16 degree |
| Max. Movement after brake | ≤ 4m at 30km/h |
| Payload Capacity | 150kg |
| Net Weight | 470kg (not including battery) |
| Battery Weight | 52kg*6 (312 kg) |
| Charging Time | 6 ~ 8h |
| DIMENSIONS | |
| Product Dimensions | 2980 x 1470 x 1560mm |
| Cargo Box Dimensions | 710 x 1160 x 260mm |
| Min. Ground Clearance | 200mm |
| Wheelbase | 2020mm |
| Wheel Span | 1270mm |
| Front and Rear Tire | 185/70-14 |
| Steering System | Pinion and Rack |
| Front Suspension | Double Arm Independent Suspension |
| Rear Suspension | Trailing-Arm |
| Chargers | Waterproof Vehicular |
| Brake System | Front: Disc Brake; Rear: Drum Brake |
| Container Loading | 12 units/40'HQ |
