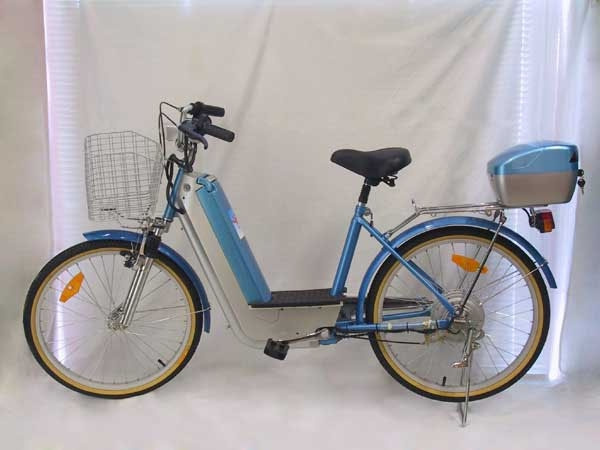

Home Shanghai Wind Rider Electric Bicycle Industry Co., Ltd. Electric Bike (JB2001Z)
Specifications
| Prod Model: | JB2001Z |
|---|
Product Description
1) Wheel type/ size: Front + back aluminum 24"2) Batteries: CE certified 3 x 12V 12Ah, lead acid
3) Range with 1 full charge: 45 - 60km
4) Load capacity: 85kg (standard)
5) Chassis (frame): Front Fork suspension + seat post suspension
6) Motor: Brush 200W
7) Max. Speed: 25km/h
8) Low voltage protection: 31.5V
9) Over current protection: 12A
10) Brakes: Front + back V-brake
11) Charger: 36V CE or UL certified
12) Input charger power: 230V-+/-10%<0.4A
13) Output charger power: 41V-+/-2%-1.6-1.7A
14) Drive system: Pedal assisted system
15) Light: Front/rear light+ turn light
16) Brake lever: Aluminum brake lever+ switch
