Home Zhejiang Yongkang Yingchen Vehicle Co., Ltd. Electric Bicycle (YCEB-7506A)
Specifications
| Prod Model: | YCEB-7506A |
|---|
Product Description

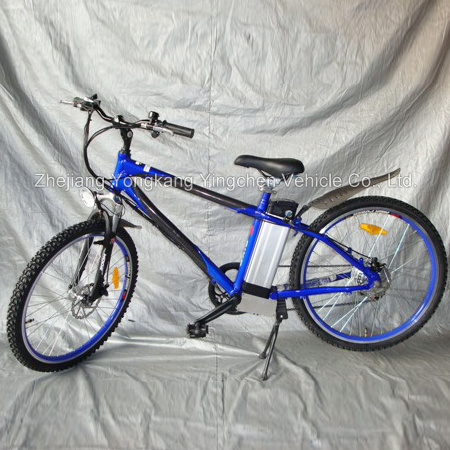

This electric bike is the good-sale bicycle of our company. Its shape is very nice as you can see!It's the lithium battery electric bike and the frame is made of aluminium. So it will be resistent to rust. It must be the great decision for you to choose this bicycle!
| Motor: | 250W High Speed Brushless Gear motor |
| Controller: | _ |
| Pedaling Run/Pedaling-Electric Assist Run | |
| Option: Pure Electric Run Model | |
| Overload protection ,Low voltage protection | |
| Battery : | Option: 24V 10Ah or 36V 10Ah Li-ion battery |
| Charger : | 100-240VAC50-60HZ , 1.8A amps smart charger |
| Charge time 4-6 hours | |
| Max Speed : | ≤ 25Km/h |
| Range: | e-bike mode 25 -35km , |
| Pedaling-Electric mode 45 -55km | |
| Load capacity: | 100kg |
| Weight:: | Li-ion battery 3.3 kgs(24V 10A ) |
| N.W./G.W. : | 25kgs/30kgs |
| Product Size: | 1570*1150* 570 mm |
| Carton Size : | 1450*280*700 mm |
| Capability : | 102pcs/20’ , 180pcs/40’, 220pcs/40’ HQ |
| Frame: | Al Alloy 6061, 7005 |
| Tyres: | 26"*1.95", puncture resistant K-shield(INNOVA) |
| Rim: | 26’’*1.5’’ Al Alloy twin wall and CNC side wal |
| Spokes: | 13g steel |
| Brakes(front): | Disc brakes |
| Brakes(Rear): | Disc brakes |
| Gears: | 6-class Shimano(TY-18) |
| Front fork: | Suspension, Al alloy double crown(ZOOM) |
| Handle bars: | Al Alloy (ZOOM) |
| Chainguard: | _ |
| Mudguard: | ST14 |
| Chainwheel : | Steel 44 T, Al alloy crank |
| Chain: | Rust resistant chain |
| Stander: | Al alloy central stander |
| Rear carrier: | Al alloy |
| Saddle : | GEL Cruiser saddle |
| Seat Post : | Al alloy with suspension(ZOOM) |
