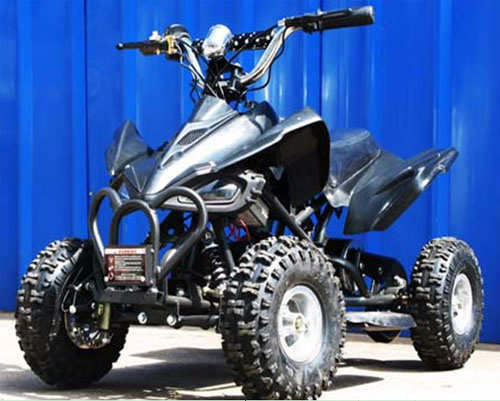

Electric ATV (GBT-E9054)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | GBT-E9054 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electric ATV (Gbt-E9054): | 350W Motor ATV |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Fuel: | Electric |
| Structure: | Without Door |
| Maximum Speed: | <50 km/h |
| Brake Type: | Disc Brake |
| Engine Type: | Electric |
Product Description
ELECTRIC ATV (GBT-E9054)Battery Specification: 36V12AH, 36V/12AH, 36V/12AHMotor Specification: 36V/500W, 36V/800W, 36V/1000W
Rated speed: 2450± 100, 2600± 100, 2800± 100
Rated power ( W ): 450W± 10%, 750W± 10%, 1000W± 10%
Controller specifications: 36V/500W, 36V/800W, 36V/1000W
Charging requirements: AC80-240V 50-60Hz 36V/MAX1.6A
Charge time ( H ): 8-9
Brake type: Former around double mechanical single disc type/φ 120; Rear a single disc type/ φ 140
Tire size: Front, rear: 4.10-4
N. W. /G. W. (kg): 38/47, 40/50, 40/50
Product size(mm): 1000× 590× 600
Packing size(mm): 995× 580× 430
Transmission category: Chain drive
Loading capacity: 110PCS/20'FT, 220PCS/40'GP, 283PCS/40'HQ
Packaging category(mm): Hob(980*560*430)+Carton(5 Layers)
