Specifications
Prod Model: |
GBT-E9053 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Electric ATV (Gbt-E9053): |
500wmotor Electric ATV |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Fuel: |
Electric |
Structure: |
Without Door |
Maximum Speed: |
<50 km/h |
Brake Type: |
Disc Brake |
Engine Type: |
Electric |
Displacement: |
500W |
Product Description

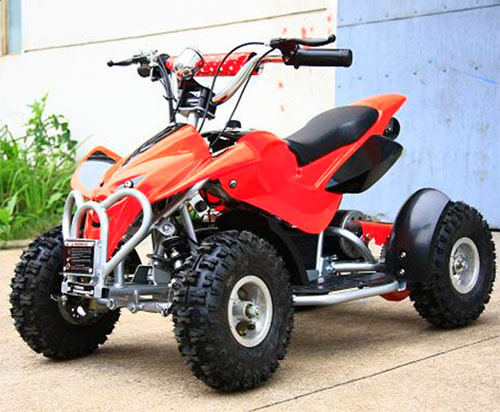

ELECTRIC ATV (GBT-E9053)
Battery Specification: 36V12AH, 36V/12AH, 36V/12AH
Motor Specification: 36V/500W, 36V/800W, 36V/1000W
Rated speed: 2450± 100, 2600± 100, 2800± 100
Rated power ( W ): 450W± 10%, 750W± 10%, 1000W± 10%
Controller specifications: 36V/500W, 36V/800W, 36V/1000W
Charging requirements: AC80-240V 50-60Hz 36V/MAX1.6A
Charge time ( H ): 8-9
Brake type: Former around double mechanical single disc type/φ 120; Rear a single disc type/ φ 140
Tire size: Front, rear: 4.10-4
N. W. /G. W. (kg): 38/47, 40/50, 40/50
Product size(mm): 1000× 590× 600
Packing size(mm): 995× 580× 430
Transmission category: Chain drive
Loading capacity: 110PCS/20'FT, 220PCS/40'GP, 283PCS/40'HQ
Packaging category(mm): Hob(980*560*430)+Carton(5 Layers)
