Specifications
Prod Model: |
EA0803 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Stable Quality: |
Sample Order Accepted |
1.Twheel Number: |
4 |
2.Tproduct Size: |
1480X860X900mm |
3.Tmotor Power: |
800W |
4.Tbattery: |
48V 20ah |
5.Tcharging Time: |
11-13 Hours |
6.Trate Speed: |
35±3km/H |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Electric |
Structure: |
Without Door |
Brake Type: |
Disc Brake |
Product Description

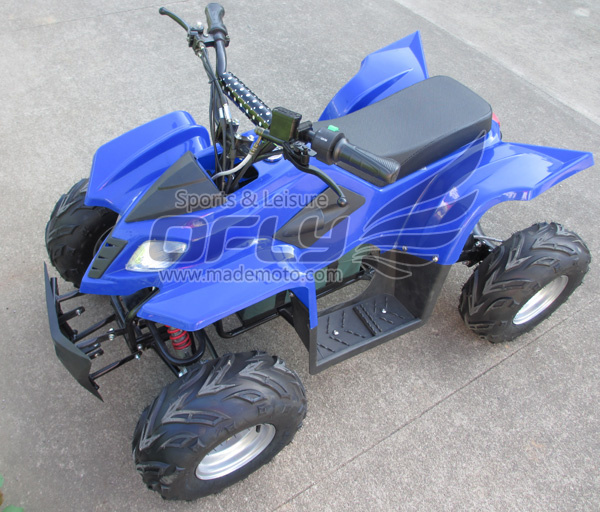

Electric ATV
2013 NEW CE Approved 800W Electric Differential Quads Bike (ATV) with Reverse Gearshift
EA0803-A
Key Specifications:
Wheel number: 4
Product size: 1480X860X900mm
Motor power: 800W
Battery: 48V 20Ah
Charging time: 11-13 hours
Rate speed: 35± 3km/h
Brake: Front: Drum brake, rear: Dual-disc brake/front and rear dual-disc brake
Transmission: Shaft drive transmission
Wheel size: 16X8.00-7
Rate power: 800W± 10%
Control chip: 48V/800W
Charging power input: AC80-240V 50-60Hz 48V/MAX1.8A
Climb capacity: ≥ 15 degrees
Load capacity: 85kgs
Color available: Red, blue, black, yellow
EA0803-B
Key Specifications:
1. Wheel number: 4
2. Product size: 1480X860X900mm
3. Motor power: 800W
4. Battery: 60V 20Ah
5. Rate power: 800W± 10%
6. Control chip: 60V/800W
7. Charging power input: AC200-240V 50-60Hz 60V/MAX2.5A
8. Charging time: 8-9 hours
9. Rate speed: 40± 3km/h
10. Brake: Front: Drum brake, rear: Dual-disc brake/front and rear dual-disc brake
11. Transmission: Shaft drive transmission
12. Wheel size: 16X8.00-7
13. Climb capacity: ≥ 15 degrees
14. Load capacity: 85kgs
15. Color available: Red, blue, black, yellow
Package: Iron cage with carton outside
Net weight: 98kgs/216lbs
Gross weight: 115kgs/254lbs
Carton size: 124X76X63cm/1PC
Container: 47PCS/20', 98PCS/40', 115PCS/40'HQ
Special Features:
CE Approved
Gear driving with speed differential control
Front & Reverse gearshift
Iron wheel rim
Minimum Order quantity: 5PCS
