Specifications
Prod Model: |
ATV50-002E |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Fuel: |
Electric |
Structure: |
Without Door |
Maximum Speed: |
<50 km/h |
Brake Type: |
Disc Brake |
Engine Type: |
500w Motor |
Displacement: |
500w |
Product Description

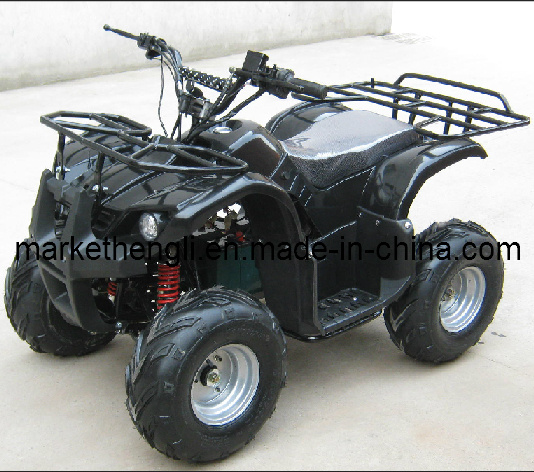

ATV50-002E
Key Specifications/Special Features:
500w Motor Electric Bull Quad
Motor Power: 500W, DC, Rated speed: 450RPM
Rated current: 17A
Battery: 12V/17AH*3PCS, sealed lead acid
Charging time: 5-8 hours
Frame: High-tensile steel
Speed: Up to 45km/h
Max Load: 120kg
Braking system: Disc brakes
Drive system: Chain
Body: ABS plastic-very strong and flexi
Front Suspension: Double Spring Suspension
Rear Suspension: Single Spring Suspension
Front Tire: 16X8-7
Rear Tire: 16X8-7
Vehicle Dimension: 1330X760X955 MM
Wheel base: 870mm
Seat height(mm): 610mm
Ground clearance(mm): 120mm
Outer packing:
Carton dimensions (L x W x H): 130 x 77 x 65cm
Container: 36PCS/20Ft; 81PCS/40Ft; 108PCS/40HQ
