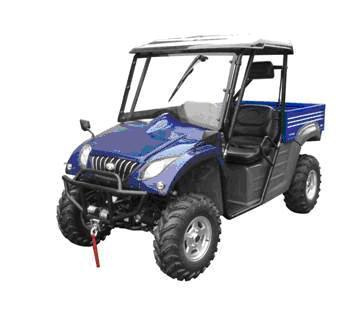

Home Stanni Motor Manufacture Co., Ltd. EEC UTV (UTV650)
| Prod Model: | UTV650 |
|---|
Product Description
1) Engine type: Two Cylinder, 4-stroke, water-cooled, 4 forward gears with reverse2) Displacement: 644cc
3) Max Torque: 49N. M/2700-3300r/min
4) Max Power: 20.6kw/4500rpm
5) Compression ration: 9.0: 1
6) Ignition system: Battery ignition
7) Oil capacity: 29L
8) Economical oil exhaust(L/100km): 6.0
9) Max speed: 80km/h
10) Starter system: Electric
11) Transmission: Dual independent shaft drive
12) Brake Type: Disc brake/disc brake
13) 4*4 system: On-command 2WD/4WD and Command front diffential lock
14) Wheelbase: 2060mm
15) Ground clearance: 320mm
16) Tires (front / rear): 25 x 8-12 / 25 x 10-12
17) N. W.: 550KGS
G. W.: 620KGS
18) Product dimension: 3023x1360x1865
19) Carton dimension(Don't take down the carried box): 2910*1360*1100
Carton dimension( Take down the carried box): 2550*1330*1150
20)QTY/20FT: 4 units
Qty/40FT: 14units
We are one of the major manufacturers of ATV500 in China. The annual output now reaches 50, 000 vehicles. All vehicles and major parts meet international CE standards, all our products have got the EEC/EPA approval.
