Home CHINA OFF ROAD KING GROUP COMPANY LIMITED EEC UTV (DMU800-01)
EEC UTV (DMU800-01)
| Price: | US $ 5500-6900/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | DMU800-01 |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Oceania,Mid East |
| Age: | Adults |
| Transmission: | Shaft |
| Start-up: | Electric |
| Certification: | EPA |
| Maximum Speed: | 60-90 km/h |
| Kind: | Vari-Speed |
| Condition: | New |
| Usage: | Farm,Hunting,Sports, Others |
| Color: | Green,Khaki,Carbon Grey,White |
| Displacement: | 800cc |
Product Description

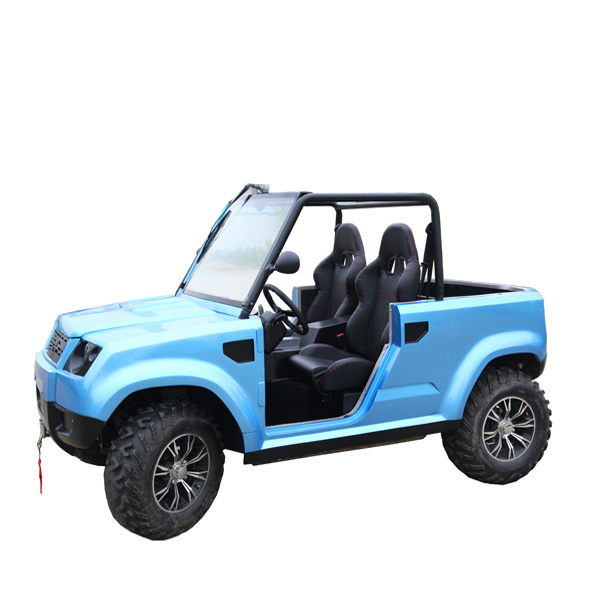

EEC / EPA DMU800-01 800cc 4X4 Shaft Drive .SPECIFICATION:
| ENGINE TYPE | 2V91MW, DOUBLE -CYLINDER, 4-STROKE, SOHC, WATER-COOLED |
| DISPLACEMENT | 800CC |
| VALVE CONFIGURATIONS | 8-valve |
| COMPRESSION RATIO | 10.3:1 |
| MAX. TORQUE | 73N.m/5000 RPM |
| MAX. POWER | 44kw/6000 RPM |
| IGNITION TYPE | IDI (Inductive Discharge Ignition ) |
| SPARK PLUG | NGK DCPR8E |
| GEAR OIL | 400ml XP-S GL-5 GEAR OIL |
| TRANSMISSION TYPE | L/H/N/R |
| PRODUCT DIMENSIONS | L2980 mm,W1520mm,H1720mm |
| CARGO BOX DIMENSIONS | L700 mm,W1200mm,H260mm |
| WHEEL SPAN | 1180 mm |
| WHEEL BASE | 2030mm |
| FRONT TIRE | 26*9-14 |
| REAR TIRE | 26*11-14 |
| GROUND CLEARANCE | 300mm |
| MINIMUM TURNING RADIUS(MM) | 4600MM |
| MAX. SPEED | 95km/h |
| STEERING SYSTEM | ELECTRIC POWER STEERING |
| FRONT SUSPENSION | DOUBLE ARM INDEPENDENT SUSPENSION |
| REAR SUSPENSION | DOUBLE ARM INDEPENDENT SUSPENSION |
| BRAKE SYSTEM | DUAL HYDRAULIC DISC |
| FUEL CAPACITY | 26L |
| CURB WEIGHT | 570kg |
| CROSS-COUNTRY POWER | APPROACH ANGLE 600 REMOVED ANGLE 750 PASSING ANGLE 350 |
| QUANTITY: | 40HQ 12 PCS |
| COLOR: | RED ORANGE WHITE BLUE GREEN(CUSTOM MADE) |
