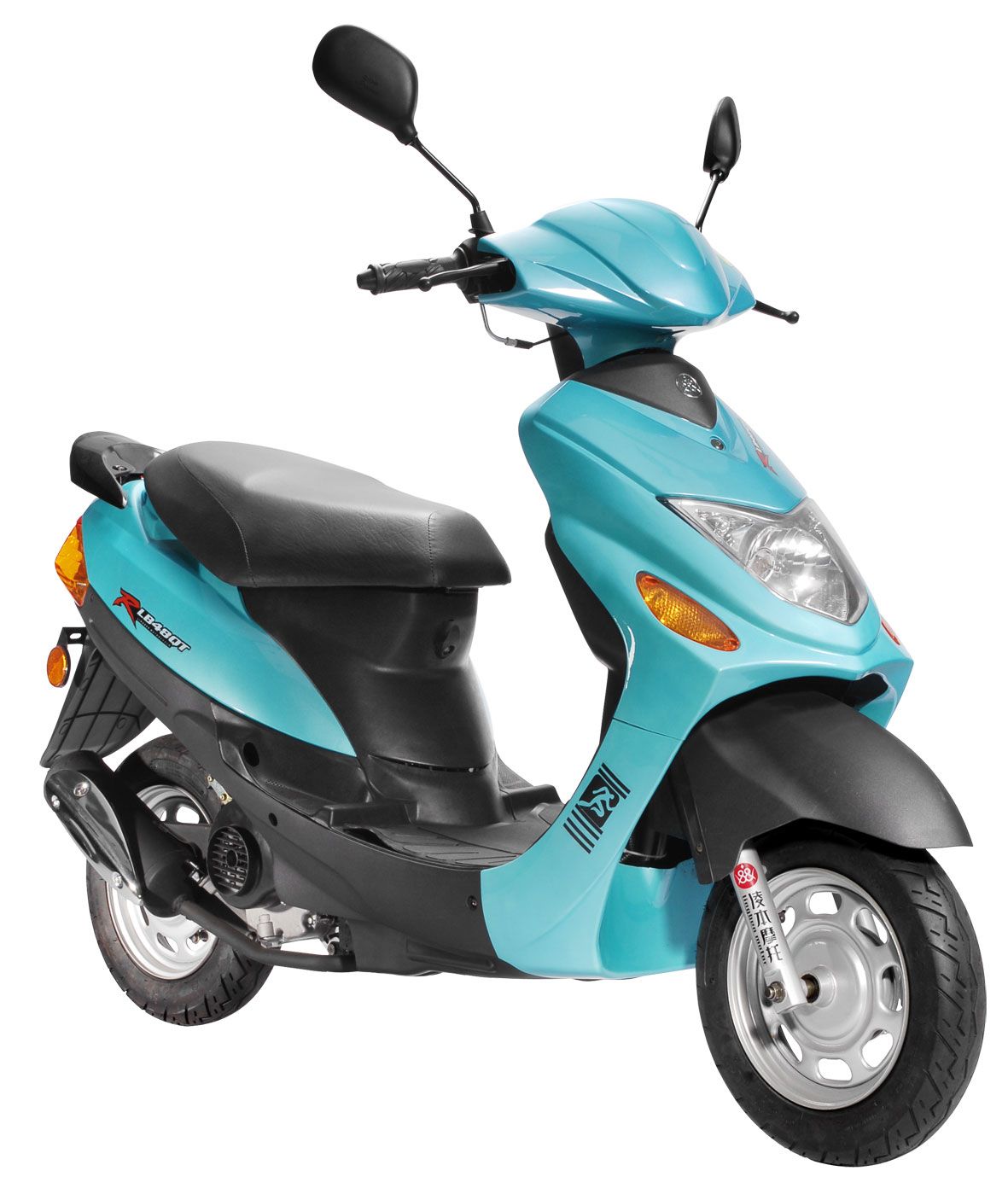

Home Zhejiang Hongzhou Motorcycle Co., Ltd. EEC Scooter (LB50QT-16C)
Specifications
| Prod Model: | LB50QT-16C |
|---|
Product Description
LB50QT-16CSCOOTER DESCRIPTION
1. Dimensions: 1686*1094*652 (mm)
2. Wheelbase: 1200 (mm)
3. Gross Weight: 82(kg)
4. Dry Weight: 79(kg)
5. Max Load: 260 (kg)
6. Max. Speed: 40(km/h)
7. Fuel tank capacity: 4(L)
8. Fuel type: #90 Benzine
9. Tyre and rim: F/R.: 3.50-10 or 100/60-12
10. Brake style: F. Disc /R. Drum
11. Absorber style: Single
12. Battery: 12V7AH
13. Number of seating position: 2
14. Idling speed: 1700± 170 r/min
ENGINE DESCRIPTION
1. Engine type: 139QMB
2. Displacement: 49.4 (ml)
3. Engine Style: Cylinder, Air-cooled, 4-stroke
4. Broe*stroke: 39*41.4(mm)
5. Ignition: C. D. I
6. Spark plug: A7RTC-1
7. Max power: 2.60(Kw/8500min-1)
8. Max torque: 3.2(N. M/7000min-1)
9. Impression Ratio: 10.5: 1
10. Transmission type: Belt
11. Lubrication: Pressure Splash
12. Starting type: Eletrick/kick start
13. Carb: HUAKAI
