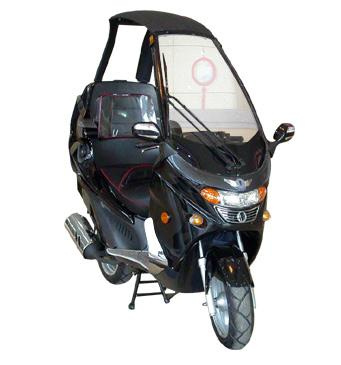

EEC Scooter (HS150T-3)

Specifications

Prod Model:	HS150T-3

Product Description

Engine: Horizontal, single cylinder - 4 stroke 150cc
Cooling system: Air cooled
Bore x stroke: 57.0 X 57.8 mm
Cylinder capacity: 147.5 ml
Compression ratio: 9.2: 1

Fuel: Unleaded petrol
Ignition: Electronic CDI
Start: Electric and kick start
Clutch: Automatic centrifugal dry clutch
Rated power: 8.0kw / 7000 (r/min)

Max power: 8.5kw / 7500 (r/min)
Max torque: 9.2N.M (5500r/min)
Frame: Steel tube jointing structure
Front brake: Disc by handle
Rear brake: Drum by handle or disc by handle

Front tyre: Tubeless 130/60-13
Rear tyre tubeless: 130/60-13
Rim material: Aluminium alloy
Front suspension: Telescopic hydraulic fork
Rear suspension: Double hydraulic helix spring

Max length: 2050mm
Max width: 660mm
Max height: 1300mm
Wheelbase: 1450mm
Max speed: 90km/h

Dry weight: 155kg
Max load: 150kg
