Specifications
Prod Model: |
EEC SCOOTER B10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
L*W*H (Mm ): |
1840*680*1190 |
Engine: |
2 Stroke |
Displacement: |
≤50CC |
Certification: |
EEC |
Max Speed: |
21-50km/h |
Fuel Tank Capacity: |
5l |
Maximum Loading Capacity: |
150 |
Product Description

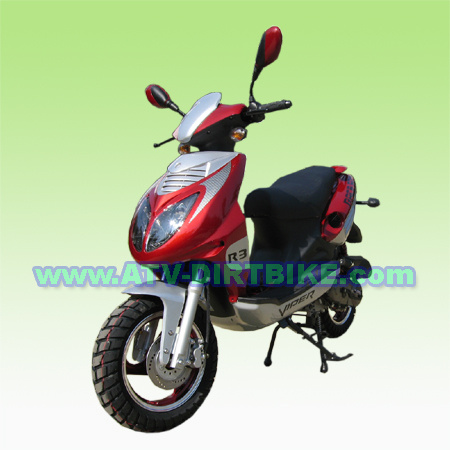

EEC SCOOTER B10
Engine Single cylinder 2 stroke, Air-cooled
L*W*H (mm ) 1840× 680× 1190
Front wheel 120/70-12; Wheelbase mm 1270
Rear wheel 120/70-12; Ground clearance (mm): 100
Air pressure of F wheel: 200 kPa; Dry weight (kg): 86
Air pressure of R wheel: 250 kPa
Max load(kg): 75; Model of derailleur: CVT
Brake base (m) ≤ 4(20km/h)
Maximum speed: ≤ 50km/h; Bore*stroke (mm): 40.0× 39.2
Consumption L/100km ≤ 2.0L/100km
Working capacity (ml): 50
Starting system: Electric & kick start
Capacity of gasoline tank(L): 5; Battery 12V 7Ah
Lubrication system Press, spark Ignition system CDI
Normal power: 2.9kW/6500(r/min
Maximum torque 3.9N. M/6500(r/min)
Compress ration 71
