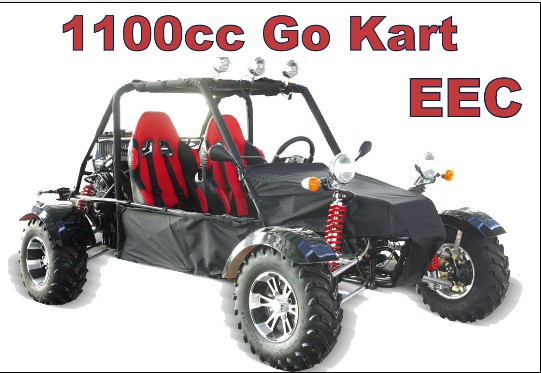

EEC Go Kart

Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Speed:	60-90 km/h
Start-up:	Electric
Transmission:	Chain
Displacement:	>400CC
Certification:	EEC

Product Description

Model G7-1100GK
Wheelbase 2320mm
Engine Model DZ465MYG
Displacement 1100ml
Bore × Stroke 65.5mm × 78mm
Max Power 15kw/3000rpm
Cylinder Compression 9.0 ± 1
Order of Cylinder Work 1-3-4-2
Valve Clearance Intake 0.11mm~0.13mm Exhaust 0.15mm~0.18mm
Engine Oil Type Summer SF 20W/40, Winter SF 10W/30
Gearbox Oil Type Medium-weight Vehicle Gearbox Oil
Transmission 5 Speed Manual with Reverse
Suspension System Independent Double A-arm
Spark Plug Resistor
Battery Capacity 12V 40AH
Rear Tire 25× 10.00-12
Rear Tire Pressure Hydraulic, Disc Brake
Maximum Front Brake Disc Diameter 220mm
Rear Brake Hydraulic, Disc Brake
Maximum Rear Brake Disc Diameter 220mm
Dimension 2960*1690*1450mm
Ground Clearance 220mm
Engine type 4-stroke, Water-cooled, Straight, Single Over-head Camshaft, Electronic Fuel Injection

Max. Torque 65N. M /1800rpm
Cylinder Diameter 65.5mm
Piston to Cylinder Clearance 0.2mm
Coolant Capacity 6.5L
Engine Oil Capacity 3L
Gearbox Oil Capacity 2L
Clutch Dry, Single Disc, Diaphragm Spring, Constant Pressure
Fuel System Computer Control, Electric Fuel Injection (EFI)
Spark Plug Clearance 1.0mm~1.1mm
Front Tire Pressure 175kpa
Front Tire 25× 8.00-12
Min Front Brake Disc Thickness 3mm
Min Front Brake Pad Thickness 5mm
Min Rear Brake Pad Thickness 7mm
Min Rear Brake Disc Thickness 8.5mm
LOADING 2PCS/20FT 4PCS/40FT 8PCS/40HQ
