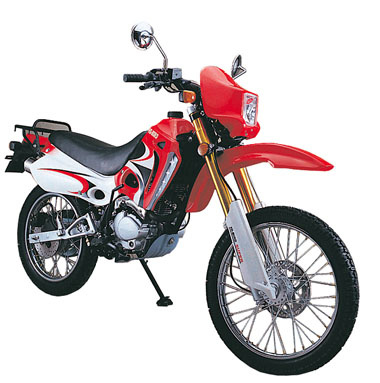

EEC/COC Approved 200cc 4-Stroke Dirt Bike (FD200E)

Specifications

Prod Model:	FD200E

Product Description

Overall length ( mm ): 2190
Overall width ( mm ): 870
Overall height ( mm ): 1210
Wheel base ( mm ): 1415
Min. Ground clearance ( mm ): 300
Net Weight ( kg ): 114
Max. Load ( kg ): 190
Turning Radius ( m ): 2. 82
Fuel tank capacity ( L ): 9
Lubrication tank capacity ( L ): 1
Front Tyre Size: 2. 75-21
Rear Tyre Size: 4. 10-18
Front Tyre pressure ( KPa ): 225 ~ 250
Rear Tyre pressure ( KPa ): 250 ~ 280
Battery: 12V7Ah
Displacement ( ml ): 144. 6
Bore x stroke ( mmxmm ): 61x49. 5
Impression Ratio: 9. 0: 1
Ignition means: CDI
Lubrication: pressure splash
Max. Power [kw/(r/min)]: 12/9000
Standard Power [kw/(r/min)]: 8. 5/8500
Min fuel comsuption (g/kw. H): = 354
Max. Torque [N. M/(r/min)]: 15/6500
Idle speed (r/min): 1400
Clutch: Manual Clutch
Primary transmission ratio: 4. 055
Transmission ratio: i1=2. 769 i2=1. 882 i3=1. 40 i4=1. 130 i5=0. 96
Transmission ratio of sprocket: 3. 733
Start type: Electrical/kick
Climbability ( O ): = 20
Max Speed ( km/h ): = 95
