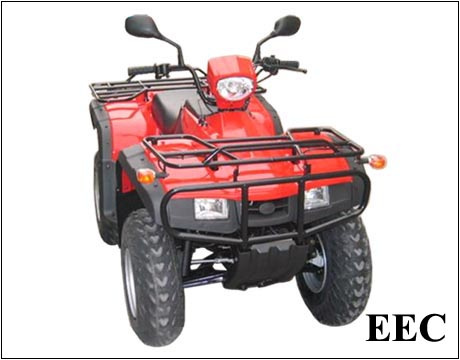

EEC ATV (XS-ATV005)

Specifications

Prod Model:	XS-ATV005

Product Description

XS-ATV005

Engine Type: 4-Strokes,Air Cooled Fully-Automatic
Transmission System: Shaft Drive
Bore x Stroke(mm): 71x 58
Piston Displacement: 229.6
Maximum Power(kw/r/min): 10/6000~7000
Maximum Torque(N.m./r/min): 15/5500~6500
Starting System: Electric/recoil backup
Transmission: 5 Speeds,semi-automatic
Seat Height(mm): 810±20
Min Turning Radius(mm): 2900
Ground Clearance: 155
Brake(Front/Rear): Disc/Drum
Tyre Fromt: AT23 * 7-10
Tyre,Rear: AT22 *10-10
Ignition Type: C.D.I
Fuel Tank Capacity(L): 12
Front Suspension: Independent front suspension
Rear Suspension: Swing arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max Load Capacity(kg): 165
Engine Oil Capacity(L): 1.6
Gear Oil Capacity(L): 0.27
Dry Weight(kg): 234
Rider Capacity: 2 Person
Wheel Base: 1160
Overall Height(mm): 1160
Lubrication: Pressuring splash
Overall Length(mm): 1940
Overall Width(mm): 1050
Compression Ration: 8.7:1
Cylinder Arrangement: Single Cylinder
Packing size:1980*1120*870mm
type-approval certificate: e9*2002/24*0024*00
