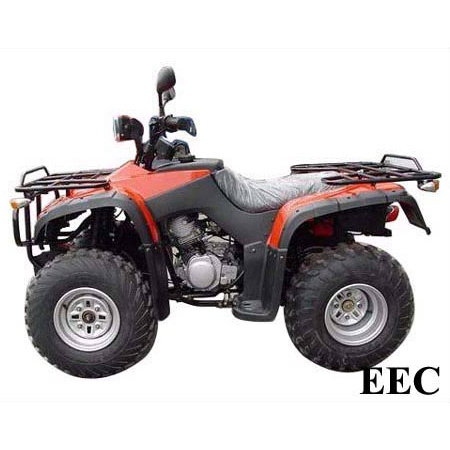

EEC ATV (XS-ATV004)

Specifications

Prod Model:	XS-ATV004

Product Description

Engine Type: 4-Strokes,Air Cooled
Transmission System: Shaft Drive
Bore x Stroke(mm): 63* 62
Piston Displacement: 193.2
Maximum Power(kw/r/min): 11/8000
Maximum Torque(N.m./r/min): 13/6500
Starting System: Electric Starter
Transmission: 5-Speed.Manual Clutch
Seat Height(mm): 810
Min Turning Radius(mm): 2900
Ground Clearance: 150
Brake(Front/Rear): Drum/Drum
Tyre,Fromt: AT23 * 7-10
Tyre,Rear: AT22 * 10-10
Ignition Type: C.D.I
Fuel Tank Capacity(L): 12
Front Suspension: Independent suspension
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max Load Capacity(kg): 150
Engine Oil Capacity(L): 1.6
Gear Oil Capacity(L): 0.27
Dry Weight(kg): 220
Rider Capacity: 1 Person
Wheel Base: 1040
Overall Height(mm): 1160
Lubrication: Pressuring splash
Overall Length(mm): 1940
Overall Width(mm): 1050
Compression Ration: 9.0:1
Cylinder Arrangement: Single Cylinder
Packing size:1980*1120*870mm
type-approval certificate:e9*2002/24*0024*00
