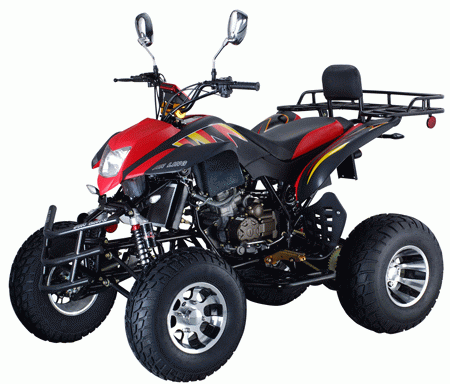

EEC ATV (LW-250ST-E12A)

Specifications

Prod Model:	LW-250ST-E12A

Product Description

Dimensions (L x W x H): 180 x 112 x 113cm
Wheelbase: 115cm
Engine type: 250cc, single cylinder, water-cooling, 4-stroke
Start mode: Electric
Power: 11.5kW/6, 500rpm
Max. Torque: 17.5N. M/5, 500rpm
Max. Speed: 95km/h
Min. Ground clearance: 120mm
Dry weight: 155kg
Transmission mode: Chain
Break type (F/R): Drum/disc
Power source: 12V, 9A
Climbing degree: 20 degrees
Fuel tank capacity: 4L
Front hanging: Integral ballonet absorber
Rear hanging: Inner ballonet absorber
Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 10
Cylinder size: 63.5 x 62.2mm
Displacement: 249ml
Transmission: 4 gears with one reverse gear, manual clutch
Seat height: 880mm
Min. Turning radius: 2, 650mm
Parking trig: Mechanical lock
Ignition mode: CDI
Load capacity: 150kg
Engine oil: 1.1L
Gas cylinder number: 1
Max. Number of riders: 1
Lubrication: Press splash
Compression proportion: 9.2: 1

Outer packing:
Carton dimensions: 148 x 95 x 88cm

Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units
