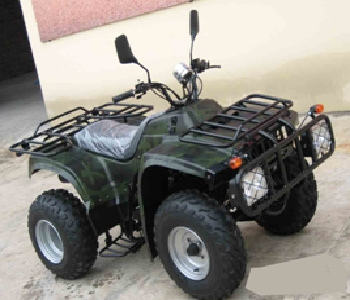

EEC ATV 150CC

Specifications

Prod Model:	EEC CHY150LHW-A (Dinosaur).

Product Description

ENGINE:
Engine Type: Lying, single-tank, 4-stroke, air-blast cooling
Bore and Stroke: 57.3 x 58
Ignition: C.D.I
Starter: Electric recoil backup
Piston Displacement: 149.5(ml)

DRIVE TRAIN:
Graded System: Auto-graded, rear reverse set
Driveline: Chain drive
CHASSIS/SUSPENSION/BRAKES
Front Suspension: Single arm
Front / Rear Brakes: Drum/disc
Front Tires: 19x7-8
Rear Tires: 18x9...5-8
Maximum Power (kw/r/min): 7.2/7500
Maximum Torque: 9.0/5500

DIMENSIONS:
Length/Width/Height: 1940 x 1050 x 1160(mm)
Axle Base: 1040(mm)
Wheel Base (Front/Rear): 715/640(mm)
Dry Weight: 180(kg)
Max Load: 150(kg)
Seat Height: 810(mm)
Compression Ratio: 8.6: 1
Minimum Turning Radius: 2900(mm)
Minimum Ground Clearance: 155(mm)
QTY/Container: 12units/20GP, 36units/40HQ

OTHER:
Battery: 12V-9AH
Fuel Tank Capacity: 12L
