Specifications

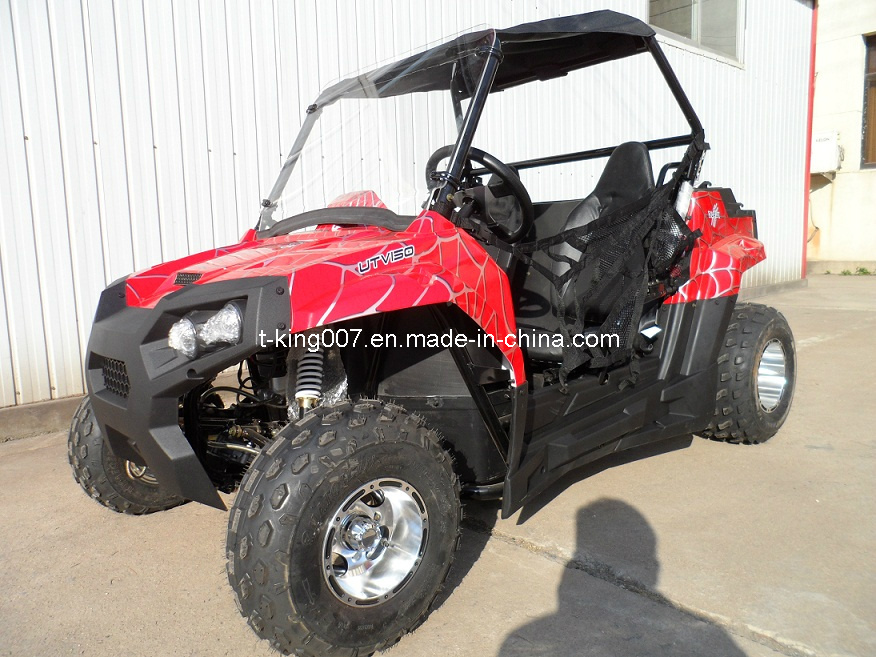

Prod Model: |
TJ170-A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Available Color: |
Red, Yellow, Blue, Silver, White, Green, Black |
Transmission: |
Chain |
Start-up: |
Electric |
Certification: |
EEC |
Displacement: |
150CC |
Maximum Speed: |
60-90 km/h |
Product Description
Items
Engine type: Single cylinder, 4-stroke, CVT
Displacement: 149.6CC
Bore× Stroke: 57.4X57.8
Compression ratio: 9.5: 1
Ignition: CDI
Cooling system: Oil cooled+Air cooled
Starting system: Electric
Vehicle dimension(L× W× H): 2285mm x 1290mm x 840mm
Cargo bed(L× W× H): 410mm x 852mm x 220mm
Wheelbase: 1650mm
Front tread: 1020mm
Rear tread: 965mm
Ground clearance: 152mm
Seat height: 500mm
Dry weight: 245kg
Fuel capacity: 9.5L
Cargo bed load capability: 10kg
Towing capability: N/A
Final Drive: Chain
Brake system front/rear: Foot Activated, 4 wheel hydraulicdisc
Suspension: F: Single A-arm R: Swing arm
Steering Gear box
Front tyre size: 19× 7-8
Front wheel size: 8× 5.5
Rear tyre size: 20× 10-9
Rear wheel size: 9× 8
Top speed: 55km/h
Loading information: 8 PCS/20GP; 18PCS/40GP; 27PCS/40HQ
Packing Size: 2290mmx1300mmx855mm
Waterproof: 0.2m
Max climbing gradient: 15°
Min opernation temperature: -20 degrees (-4) degrees
Max opernation temperature: 40 degrees (104) degrees
Max torque and rotate speed: 9.8N. M(4000r/min)
Rated power and rotate speed: 6.8kw(5500r/min)
