Specifications

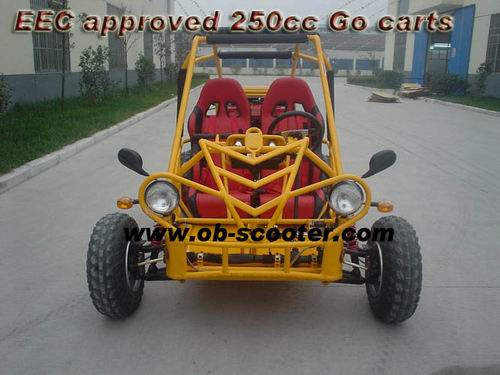

Product Description
Size : 2020 x 1360 x 1550 mm
( L x W x H )
Wheel Base : 1750 mm
Engine : Foced Airl cooled 4 stroke
Displacement : 244
Compression Ration : 10.3 : 1
Power : Max 12.5kw / 7500 rpm
Torque : Max 17.6Nm/5500Nm/r/min
Starting : electric
Lgnition : CDI
Lubrication : Force and splash
Transmission: Automatic CVT
Spark Plug : NGK C7HSA
Capacity : 2 rider or 200KGs
Fuel tank : 9.5
Engine oil Capacity : 850ML
Climbing ablility : Max 25 degree
Electric :
battery : 12V 6.5Ah
Head Light : 12V 15W
Tail Light : 12 V 10W/5W
Fuse : 10A
Chassis:
Hydraulic disc brake for front and rear.
Front tire: 21 x 8-10
Rear Tire: 22 x 10-10
Front Suspension : Dual A - Arm with 1.8'' ( 45mm ) travel distance
Rear Suspension : Sprint over shock with 2.4'' (60mm) of travel
Brake disctance : 7m at 20miles/h
Top Speed : 35Miles/ H
or limited under customer request
Weight : 295KG
