Prod Model: |
DMD450-03X |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Starting System: |
Kick Start and Electric Start |
Engine: |
4 Stroke |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Certification: |
EEC |
Tank Capacity: |
8L |
Seat High: |
960 Mm |
Displacement: |
449cc Liquid-Cooled, Single Cylinder,Four-Stroke E |
Product Description

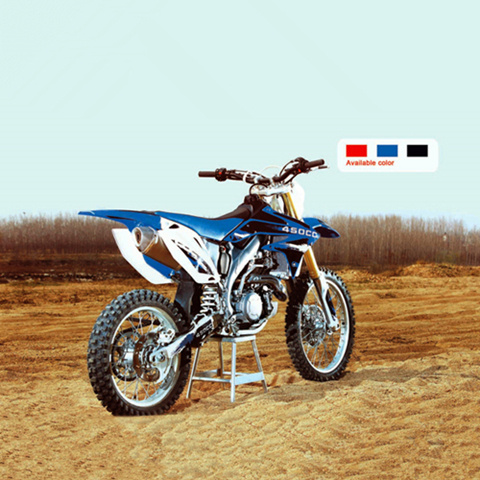

DMD450-03X
(Standard Version)
Engine
Engine Type:449cc liquid-cooled, single cylinder,four-stroke engine
Bore & Stroke :96mm * 62.1mm
Compression ratio:11:1
Fuel System:Carburetor
Maximum Output:43.5hp / 7500rpm
Maximum Torque:42.5N.m / 6500rpm
Ignition System:CDI
Starting System:Electric & kick
Gearshift Type:5 speed ,international gear shift
Final Drive:KMC 520 chain ,13T/48T
CHASIS / SUSPENSION / BRAKES
Chasis:Aluminum alloy
Front Suspension:47mm Inverted with rebound and compression-damping adjustability,250mm travel
Rear Suspension:Pro-link single shock with spring preload and rebound-damping adjustability,115mm travel
Front Brakes :Single 240mm disc with twin-piston caliper
Rear Brakes:Single 240mm disc
Front Wheel:21'
Rear Wheel:18'/19'
DIMENSIONS
L × W × H:2320 × 830 × 1300 mm
Wheelbase:1500 mm
Ground Clearance:330 mm
Seat Height:960 mm
Fuel Capacity:8 liters
Weight:118 kg
Available Colors Blue / Black
QTY (1*20') 30Pcs
