Home Jinhua Bojo Technology Co., Ltd. EEC 600cc ATV 4X4

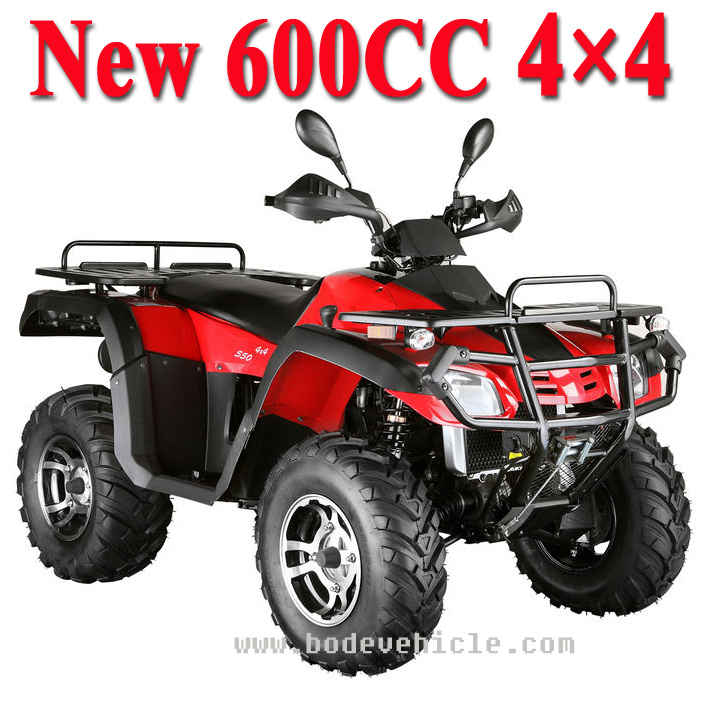

EEC 600cc ATV 4X4
| Price: | US $ 3980-4980/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 200/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | MC-395 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start: | Electric Start |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | ISO9001 |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | >400CC |
| Structure: | Without Door |
| Maximum Speed: | >75 km/h |
| Brake Type: | Disc Brake |
| Condition: | New |
| Brand: | Bode |
| Power: | 500cc |
Product Description
EEC 500CC ATV 4X4 Driving, 2 Passenger Specification1. ENGINE TYPE 4 Stroke, V-Twin Cylinder, SOHC, EFI
2. ENGINE COOLING Liquid-Cooled
3. MAX. POWER(KW/rpm) 26.5KW/7000rpm
4. STANDARD POWER 25KW/6500rpm
5. MAX. TORQUE(N. M/rpm) 45N. M/5500rpm
6. MAX. SPEED ≥ 90Km/h
7. BORE STROKE 72.5mm X 66.8mm
8. DISPLACEMENT 552ml
9. COMPRESSION RATIO 10.3: 1
10. FUEL SUPPLY SYSTEM ECU
11. LUBRICATION Separated & Pressure
12. AIR FILTER TYPE Dry Air-Cleaner Net
13. SPARK PLUG DR8EA
14. STARTING Electric Start & Pull Start
15. STARTING PROCEDURE Turn lgnition
16. GEARSHIFT Manual
17. TRANSMISSION CVT (H/L/N/R)
18. BRAKE FRONT Disc Brake
19. BRAKE REAR Disc Brake
20. BRAKE DISTANCE 7m/30km/h
21. FRONT SUSPENSION Macphersan Independent
22. REAR SUSPENSION Double Wishbone
23. SHOCK ABSORBER(F/R) Spring and Damp Shock Absorbor
24. BATTERY 12V/18AH
25. ENGINE OIL 1.5L
26. TRANSMISSION OIL 0.8L
27. REAR OIL 0.3L
28. FUEL 93# Unleaded Gasoline
29. FUEL CAPACITY 12L
30. TURNING RADIUS 3280mm
31. MAX. LOAD(kgs) 204kg
32. FRONT TIRE 25X8-12
33. REAR TIRE 25X10-12
34. OVERALL 2016X1180X1237mm
35. PACKING SIZE 2310X1320X870mm
36. WHEELBASE(mm) 1271mm
37. SEAT HEIGHT(mm) 895mm
38. GROUND CLEARANCE 300mm
39. NET WEIGHT(kgs) 285kgs
40. COLOR Red, Blue, Orange, Black, Army Green, Camo
41. LOADING QUANTITY 8PCS/20'GP, 18PCS/40'GP, 27PCS/40'HQ
42. MOQ 8PCS (1*20'GP
