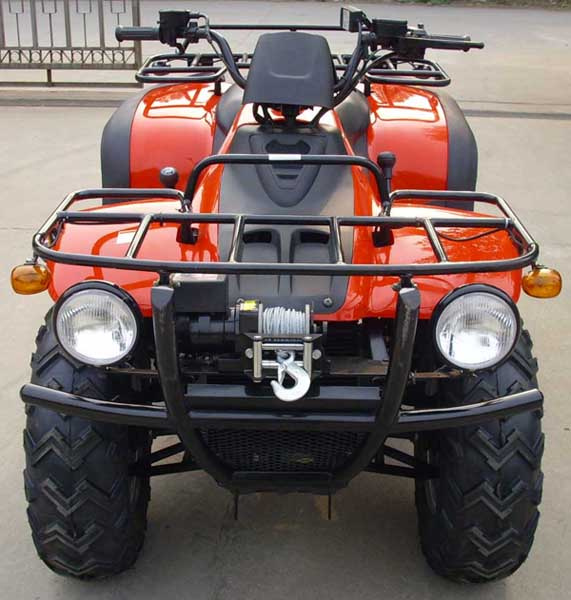

EEC 4WD Automatic ATV/Quad (XR300-J)

Specifications

Prod Model:	XR300-J

Product Description

Ec type-approval number: E4*2002/24*1490*00
ENGINE
Engine Type: Liquid-cooled, 4-stroke, single Cylinder
Cylinder capacity: 267 cc
Bore x Stroke (mm): 71 x 71
Compression ratio: 10.2: 1
Carburetor: Evenly attracts
Maximum power output: 20.7 HP / 15.2Kw
Maximum torque: 23 N·M
Ignition: CDI
Starting System: Electric
Transmission: CVT Automatic, manual controlled 4x2, 4x4
Climbing Gradient: 30° with High Gear
CHASSIS
Tyres Front / Rear: 25*8-12 / 25*10-12
Suspension Front: Independent Double A-arm
Suspension Rear: Swingarm
Brakes Front: Dual hydraulic disc
Brakes Rear: Single hydraulic disc
DIMENSIONS AND WEIGHT
Length * width * height: 2070*1150*1175 mm
Wheelbase: 1235 mm
Ground Clearance: 200 mm
Fuel Capacity: 13 liters
Dry weight: 300 kg
OTHER
Loading QTY: 12pcs/20' 36pcs/40'
Color Available: Red, Blue, Black, Green, Camouflage
