Dx 003 Manufacturer Cheap Electric Scooter

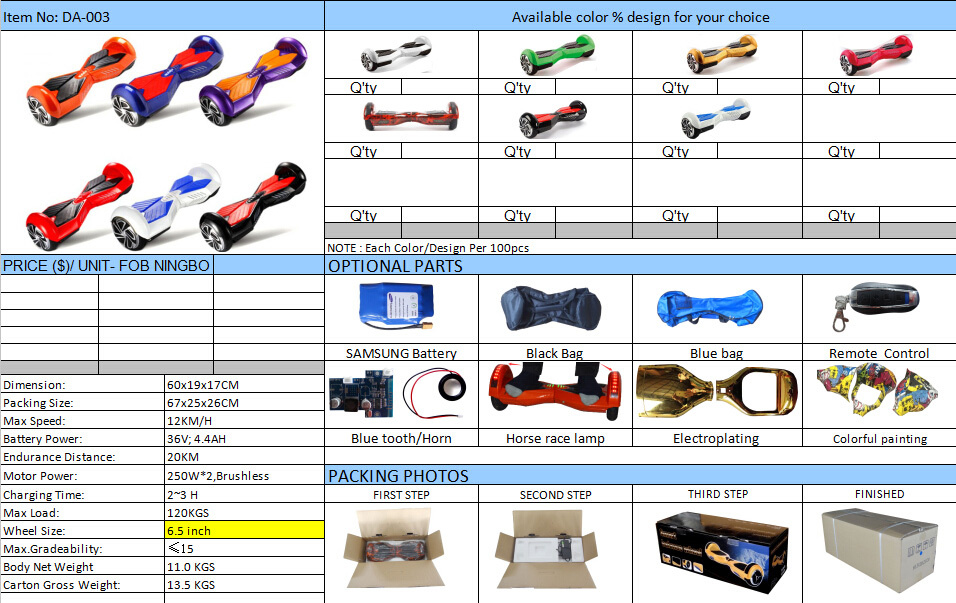

Specifications

Prod Model:	cheap electric scooter Dx 003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	60X19X17cm
Packing Size:	67X25X26cm
Max Speed:	12km/H
Battery Power:	36V; 4.4ah
Endurance Distance:	20km
Motor Power:	250W*2, Brushless
Charging Time:	2~3 H
Max Load:	120kgs
Max.Gradeability:	<=15
Wheel Size:	6.5inch

Product Description

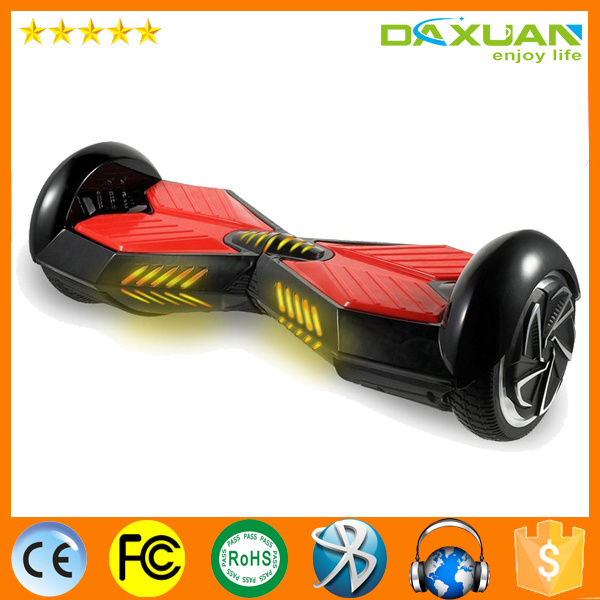

Dx 003 Manufacturer cheap electric scooter

Opreation Princinple	This High Tech-entertainment Scooter is based on "Dynamic stability" princinple, instailed with high
	Speed centeral microprocessor, built-in prcision electronic gyroscopes and intelligent controlled drive
	moter.
	It could detect and calculate driver's opreration instruction accurately, then control its running.
	While standing on the pedal, it is easily to drive the scooter forward, back up, steering or
	stopping by control your body forward and backward.
	It combined stylish design, simple opperation, flexible control, low-carbon functional, which is
	the best companion of home travel, entertainment and leisure activities.



Saftey Instructions	Instruction before driving:
	We sincerely hope all drivers could enjoy a lot of fun and take a ride of the scooter safely.
	All experiences of riding a bicycle, car, skiing or use other similiar vehicle could be applied to the
	scooter controling and driving.
	·Before driving, please read this user manuel carefully. If any loose, damage, or abnormal situation
	happened, please contact the sales or distributor immediately.
	·A lot of driving safety information will be given within this user manual, including speed limit, in-
	dicator light alarm, safe power off ect.
	·Do not use it to harm others property or safety.
	·Do not change or seperate any component privately, cause it will affect its normal performance, and
	even destroy it.Any property losses or dangerous resulting by this should not included in our company
	liability.
	·Do not drive the scooter on uneven road or hustle & flow.
	Driving Safely:
	·Do not drive it too young or too old, please wear safety equipment while driving.
	·Do not drive it under the influence of alcohol or other non conscious situation.
	·Driver's max weight limit: 100KG
	·Driver's min weight limit: 20KG
	TIPS: Over wight people is hard to drive steady.
Endurance Mileage	The scooter's mileage is related with many factors, such as:
	·Road type: smooth, flat ground with long travel distance, an on the contrary with short travel distance.
	·Weight: driver' weight affect travel distance
	·Maintenance: Reasonable chagrging and maintenance of batteries will increase driving distance, and on
	the contrary will reduce travel distance
	·Speed and driving style: Maintain moderate speed will increase driving distance, frequent start/stop/ac-
	celeration/deceleration will reduce travel distance.
Speed	·Maximum speed: 10KM/hours(not recommended to use maximum speed while driving)
	·The scooter could keep good balance withing prescribed speed, if beyond, will resulting in loss of
	balance.
Uphill&downhill	The scouter could detect the slope while uphill or downhill, then output torque through intelligent chip
	automatically to adjust to motor, ensure drivers safety while driving.
	CAUTIONS:
	Please drive it with the protection of other one's help while first time operation, to prevent
	fall down or lose balance.

Operation Instructions

Please follow the prompt operation instructions to learn and practice driving. To ensure you in comfortable

clothes and shoes, and make sure the flexibility of the body. If necessary, please wear safety equipment wh-

ile driving, kind hope you can successfully complete this initial driving stage.

Sweet driving practice

·Step 1: Press the power switch and start the scooter.

·Step 2: Ready for driving, one foot step on pedal pad, the indicater running lights is on after the foot

switch is triggered. The scooter system into self-balancing condition. Another foot step on the

other side pedal pad after kept the body balance. Stationary standing on he pedal pad on both side

of your body. Keeping whole body relaxed status.

·Step3: Kept balance center of gravity after controlled well and standing on The Scooter successfully.

The scooter will keep staionary. Through the body forward or backward small amplitude to control

it forward and backward.Remember that the body movement amplitude can't be large.

·Step4: Control the directions of the scooter. The right foot forward for left turn, left foot forward for

the right.(Turning right schematic diafram)

·Step5: Train of getting off from scooter. Please keep scooter stationary and make balance before getting

off. Single foot jump down form the back of scooter body. when you stand steady on the ground. the

other foot can leave the pedal pad.

Tips for driving practice place:

Plese train pracitce on flat road. If you cna not control it skillfully, please do not drive it in

crowded place. In the early of training stage, please practice it at empty and flat place. Training

someone's company.

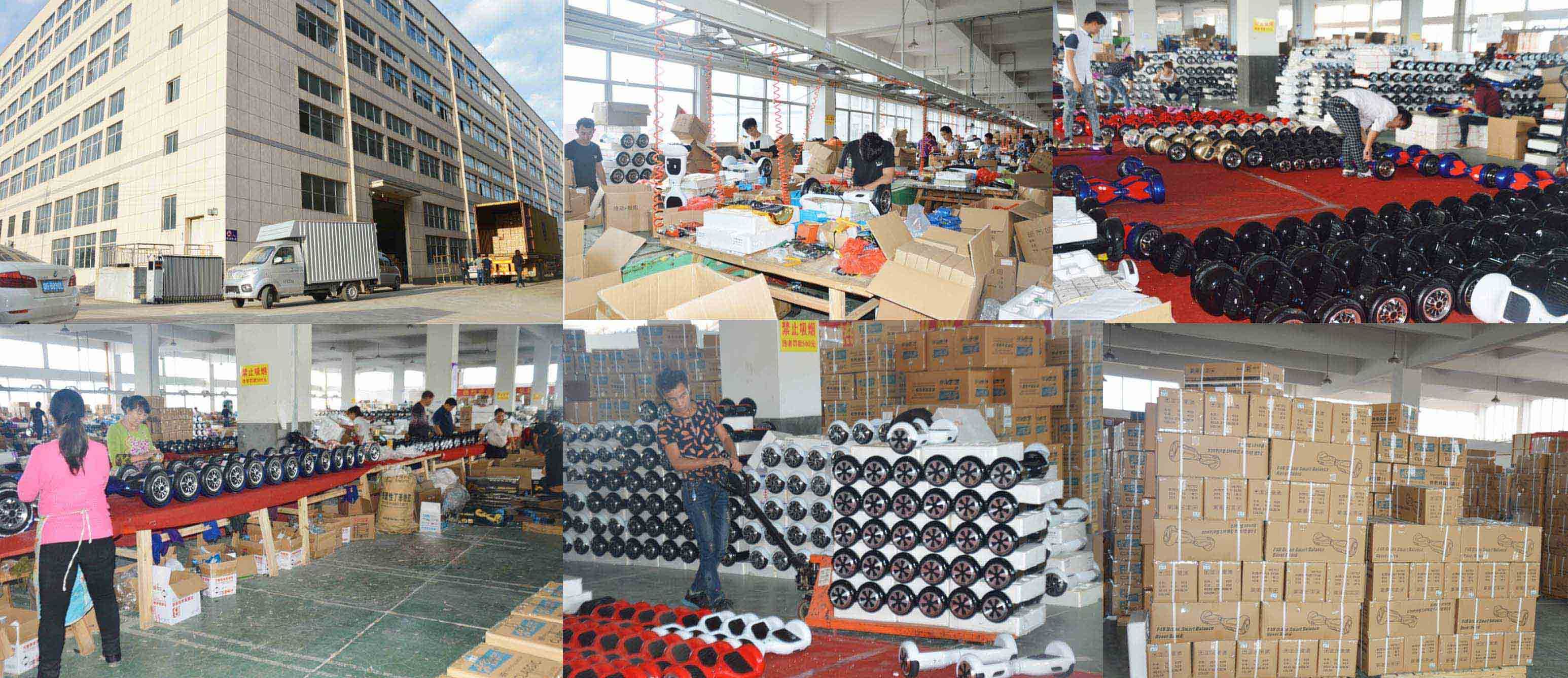

We are a professional self-balancing scooters manufacturer with years' production experience.
With the assistance of more than 20 raw material supplier and large output, we have product
of reasonable price with high quality.
