Specifications
Prod Model: |
GC1501 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brakes: |
Front/Rear Hydraulic Brake |
Front Wheel: |
19*7-8 |
Rear Wheel: |
22*11-10 |
Load Capacity: |
165(Kg) |
Seat Height: |
460mm |
Transmission: |
Chain |
Start-up: |
Manual Start-up |
Certification: |
CE |
Displacement: |
150CC |
Maximum Speed: |
50km/H |
Product Description
Go Karts

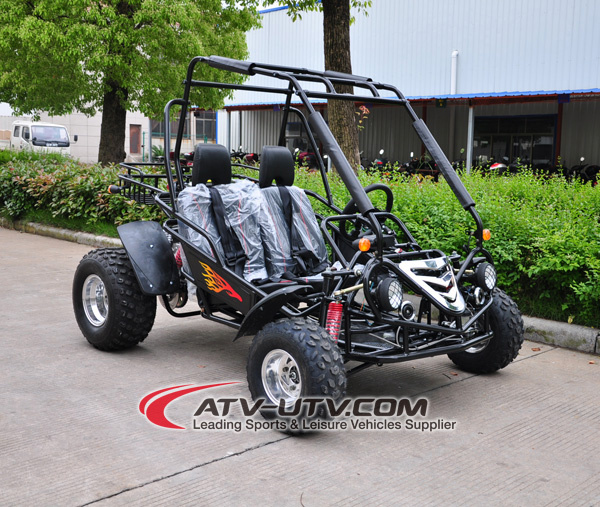

Double Seat Racing 4 Stroke Go-Kart for kids with air cooling 150CC Engine
GC1501
Key Specifications:
Wheel number: 4
Outer dimensions: 2220*1330*1520
Piston displacement: 150cc
Fuel tank: 7(L)
Engine type: 150cc, 4 stroke, 1-cylinder, air-cooling
Starting system: Electric start
Power transmission: Chain drive
Ignition method: CDI
Brakes: Front/Rear hydraulic brake
Wheel size: Front: 19*7-8; Rear: 22*11-10
Max loading: 165(kg)
Max speed: 50(Km/h)
Seat height: 460mm
Color: Yellow, black, red, blue,
Max Power: 7/7500(kw/rpm)
Max Torque: 8/4500(Nm/rpm)
Lubrication: Pressure and Splash
Compression Ratio: 10: 1
Transmission: CVT with reverse
Battery: 12V9Ah
Wheel Base: 1580(mm)
Mini Ground Clearance: 160(mm)
Package: Carton Packing
Net weight: 200(kgs)
Gross weight: 215(kgs)
Carton size: 2205*1195*800mm
Container: 8pcs/20', 30pcs/40'HQ
