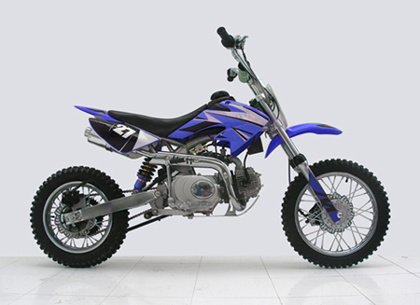

Home Shanghai Nsd Development Co., Ltd. Dirt Bike
Specifications
Product Description
1) Engine:125cc / 110cc, 2 / 3-valve, 2-valve, 4-stroke, single cylinder, air-cooled2) Starter:Kick start (AGB-21F) / kick + electric start (AGB-21G)
3) Bore * stroke:50 * 49.5mm (110cc, 2-valve), 52.5 * 49.5mm (110cc, 3-valve), 52.3 * 50mm (125cc, 2-valve)
4) Compression ratio:8.2:1, 8.8:1, 9.0:1
5) Ignition:CDI
6) Transmission:Manual or auto, with 4 speeds
7) Seat height:740mm
8) Wheel base:1, 120mm
9) Tank capacity:3L including 0.8 reserve
10) Power:4.6kW / 7, 500rpm, 5.0kW / 7, 500rpm, 8.5kW / 9, 500rpm
11) Final drive:420
12) Chain:14T / 37T
13) Brakes:Front and rear hydraulic disc brake
14) Front / rear wheel size:2.15 * 14" / 3.0 * 12"
15) Products size:160 * 75 * 97cm
Outer packing:
Carton size:138 * 42.5 * 70cm
G.W.:79kg
N.W.:64kg
Conveyance:
Qty/20' FCL:64pcs
Qty/40' FCL:136pcs
Qty/40' HQ:153pcs
