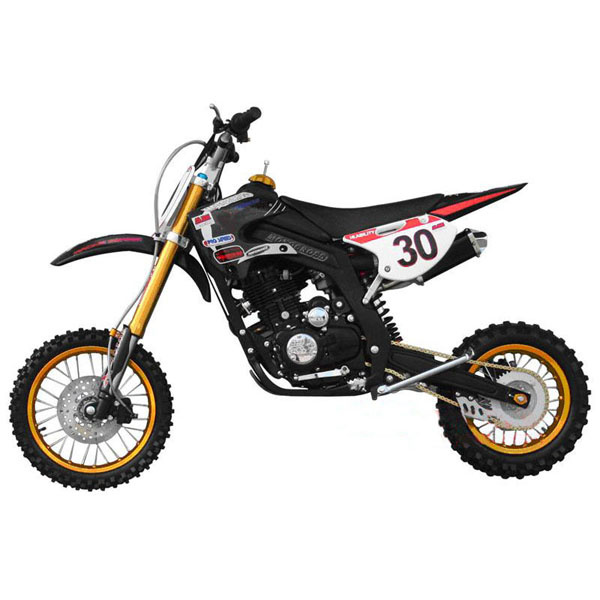

Home Zhejiang Landee Motion Apparatus Co., Ltd. Dirt Bike (LD-30)
| Prod Model: | LD-30 |
|---|
Product Description
Engine Type: 4-Stroke single cylinder air cooledBore & Stroke: 62 x 49.5mm(150cc), 63.5 x 62.2mm(200cc), 67 x 65mm (250cc)
Starter: Kick Start or kick+electric ( 150cc ), Kick+electric start (200cc), Kick+electric start (250cc)
Ignition: CDI
Carburetor: 25mm Double float
Compression Ratio: 9.2: 1
Drive train
Transmission Manual: 5-speed included neutral gear, International shift pattern
Clutch: Manual
Final Drive: Chain #428
Max Power : 9.3/(8500+/-5%) (150cc), 10.8/8000 ( 200cc), 11.5/6500 (250cc)
Frame & Swing Arm Steel
Front shock: Inverted hydraulic Adjustable shock
Rear shock: Adjustable Air /Oil shock Absorber
Brakes: Front & Rear Hydraulic Disk
Seat Height: 780mm
Wheel base: 1300mm
Ground Clearance: 240mm
Front & Rear wheel Front: 60/100-14"; Rear: 80/100-12"
Engine and Rear Sprocket: 16 / 43 tooth
Package Size L/W/H: 175 x 80x1020cm, L/W/H: 154 x 43 x 75.5cm
Tank Capacity: 3ltr.
G. W. /N. W.: 96kgs /86.5kgs
Colors: Black, Red, Green, Blue, Yellow, carbon looking
Toolset: Standard
Loading information
20" Ft Container: 51 pieces
40" Ft Container: 111pieces
40" Ft HQ Container: 111pieces
Fuel type: > 90# (GB17930-1999)
Engine machine oil: 15 W/40SE.
May we take this opportunity to introduce ourselves as one of China's leading professional manufacturers of high quality Dirt Bikes and ATV's.
Our exclusive designs are produced in house by our talented team of designers and highly skilled engineers. We have contracted the industry leader in engine manufacture- Zongshen to produce the most reliable high spec engines for our plant. All products are electronically and mechanically tested to the highest quality control standards to meet international requirements.
Our exclusive designs are produced in house by our talented team of designers and highly skilled engineers. We have contracted the industry leader in engine manufacture- Zongshen to produce the most reliable high spec engines for our plant. All products are electronically and mechanically tested to the highest quality control standards to meet international requirements.
